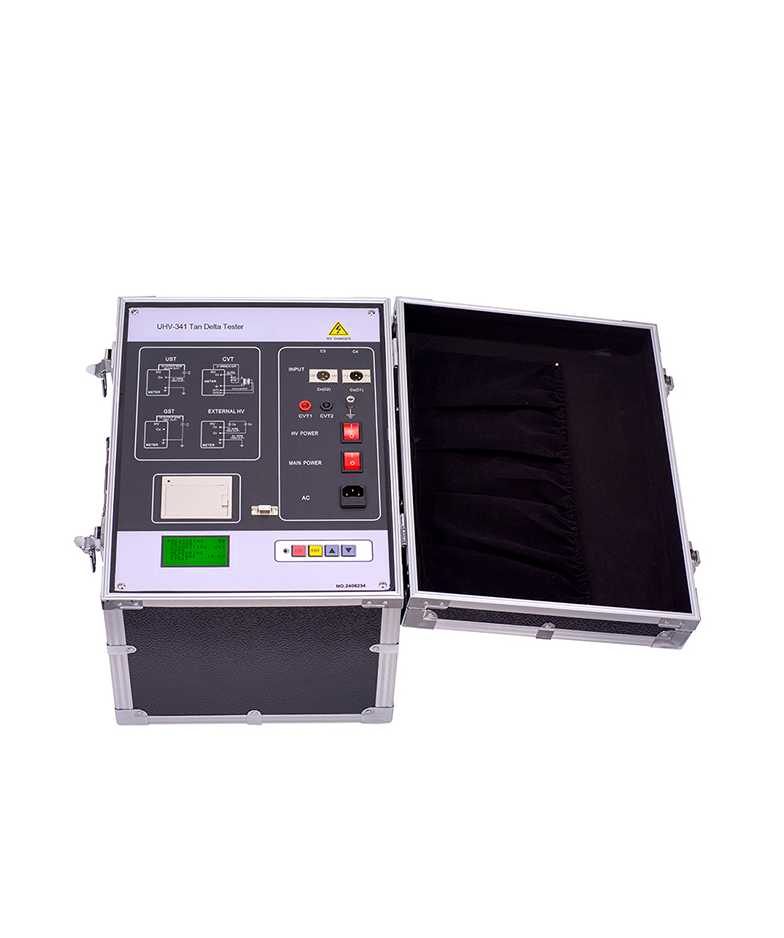

Wuhan UHV-341 Tan Delta Tester

High voltage output: 0.5~10kV

Increasing by 500V for each level, a total of 20 levels, capacity: 1500VA

Accuracy:

tgδ: ± (reading *1.5% +0.06%)

Cx: ± (reading * 1.5% +5 PF)

Resolution:

tgδ: 0.01%

Cx: 1pF

Measuring range:

0.01% <tgδ <100%

3PF <Cx <60000PF

When it is 10kV, Cx ≤ 30000PF

When it is 5kV, Cx ≤ 60000PF

Power supply: AC 220V ± 10%, 50 ± 1Hz

Measuring method:

a.working frequency：50Hz

b.different frequency: 45Hz/55Hz Automatic frequency conversion

Harmonic adaptation: ≤ 3%

Application condition: -15 ℃－50 ℃ Relative humidity <80%

Dimension: 460 (L) × 345 (W) × 350 (H)

Weight: 35 kg
