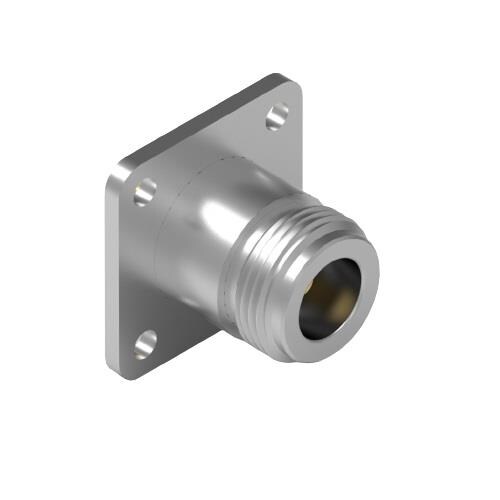

Gender: Jack (Pin)
Polarity: Standard
Frequency: DC to 6 GHz
Impedance: 50 Ohms
RF Series: N Type
Body Style: Straight
Body Finish: Nickel
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Cycles
Insertion Loss: 0.25 dB
Mounting Style: Panel Mount
Contact Plating: Gold
Contact Material: Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Solder Cup
Coupling Mechanism: Threaded
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
