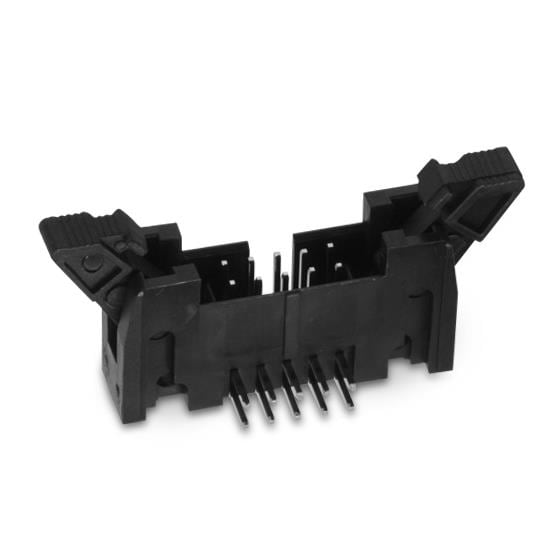

Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 10 g
Housing Color: Black
Latching Type: Eject Latch
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Mating Post Length: 5.7 mm (0.224 in)
Flammability Rating: UL 94 V-0
Number of Positions: 60 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3.4 mm (0.134 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
