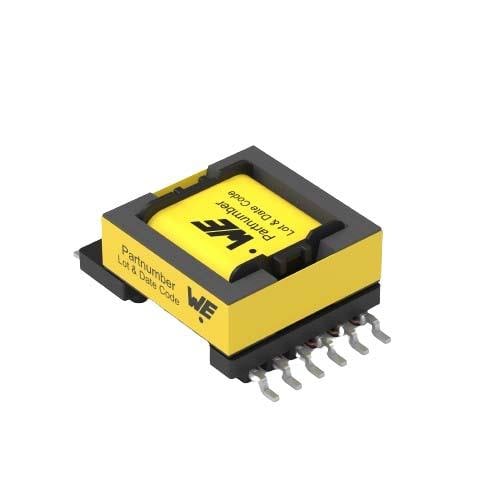

Width: 33.8 mm
Height: 12 mm
Length: 21.5 mm
Inductance: 800 uH
Turns Ratio: 20:0.8:0.8:2.8:2.2:1
Unit Weight: 12.194 g
Power Rating: 22.5 W
Mounting Style: SMD/SMT
Primary Winding: Dual Primary Winding
Secondary Winding: Triple Secondary Winding
Termination Style: SMD/SMT
Operating Frequency: 68 kHz to 140 kHz
Primary Voltage Rating: 85 VAC to 265 VAC
Secondary Current Rating: 1.3 A, 1.3 A, 500 mA
Secondary Voltage Rating: 5 V, 5 V, 19 V
Operating Temperature Range: - 40 C to + 125 C
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
