Capacity: 600KN
Frame Type: Worm Wheel Worm Gear
Force Test Range: 2%-100% F.S (1%-100% F.S)
Force Test Accuracy: Better than +/-1% (+/-0.5%) of indication value
Strength Resolution: ±1/500000
Deformation Test Range: 0.2%-100% F.S
Deformation Error: Better than +/-0.5% of indication value
Displacement Resolution: 0.001mm
Control Method: Constant Speed/ Constant Load/ Constant Displacement Control
Max Ram Stroke Speed: 100mm/min
Tension Space: 800mm
Compression Space: 700mm
Grip for Sample Thickness: 0-30mm
Grip for Sample Diameter: ⌀13-40mm
Compress Grip Size: ⌀160mm
Piston Stroke: 200mm
Clamping Method: Hydraulic
Dimension:
Main Frame(mm): 905x580x2260
Oil Cabinet(mm): 1200x760x950
Weight: 2700kg
Product Description:

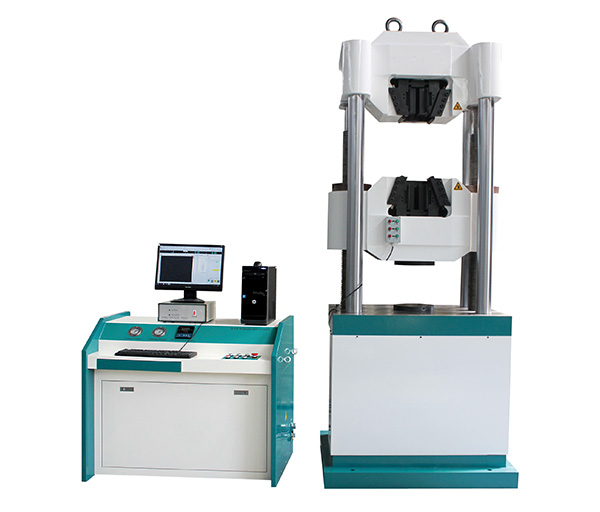

XHL-05 computer control hydraulic universal testing machine are widely used for tension, compression, bending and shearing test of metal materials.
It conform to ISO 7500/1 Class1, ASTM E4, BS 1610 Grade 1, DIN 51221 Class1.
Test Standards: ISO, ASTM, GB, BS, EN, ASTM, JIS...etc.
Product Features:
Adopts advanced neural adaptive PID control algorithm, and truly realizes three closed-loop digital control
Load accuracy of +/-1% down to 2% of load cell value provides a high dynamic range, thereby reducing the number of load cells required to cover the full force range.
Built-in of test methods meeting international test standards.
Pre-load test standards for ASTM standard and ISO standard for foam test
All test procedure is carried out easily with our professional software
Test automation and batch testing
Test creation is provided by software
Multi points load is calibrated to ensure calibration is accurate
History track function easy to track previous test results according to date, name..etc
Adopt high precision hydraulic load cell to keep measurement more accurate and stable.
Automatically detection of the adjustment and calibration by electronic system and software.
Real-time processing digital signal, Integrated dual routes precision instrument programmable amplifier, digital zero, Load, extension, and cylinder ram stroke three sensor input channel
High stiffness structure which can endure steady during the testing.
With the protective function of overload, over current, over voltage.
Test results can be directly output, or via bmp, excel, txt...etc
PC interface is via USB allowing standard laptops to be used with no special PC interface cards required, also can use RS 485, Wifi.
With accuracy and perfect data analysis function, utilizing man-machine interactive mode to analyze and calculate mechanical performance of materials, and automatically calculate max force, elongation, tensile strength, elasticity modulus, yield strength, non-proportional extension stress, Rp0.2(бp0.2),Rsl(бsl))、Rm(бb), R p0.05(бp0.05) and E, etc, also with analysis process with man intervention, thus improve accuracy.
User Italian Marzocchi Crescent Oil Pump
