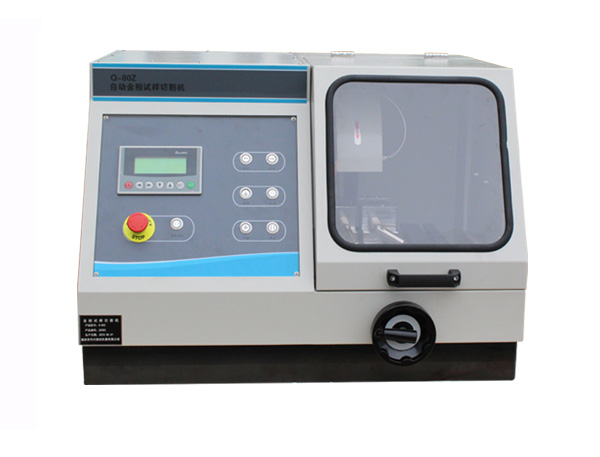

XHinstruments XHL-22 Metallographic Cutting Machine (500-2800r/min)

Input voltage: 380V 50HZ

Feed speed: 0.1-2.5mm/min

Spindle speed: 500-2800r/min

Cutting: Manual/Automatic

Cutting capacity(Max): Φ100mm

Max Table Moving Distance: 0-200mm( Y axis)

Cut-off wheel: Φ350×2.5×32mm

Cutting motor: 3kw

Table Dimension: 310mm×280mm

Dimension: 800×880×600mm

Weight: 170Kgs

It is suitable for cutting precision various materials with strong ability, high reliability, easy operation. The machine consists of machine body, electrical control tank, super cutting room, and cooling system, supporting more economical and convenient cutting models. Meanwhile the user can define cutting models. Meanwhile the user can define cutting speed and track. At the same time, this machine have following features, such as self-test, security. Running tips in order to improve the quality of cutting sample. It is one necessary equipment in laboratory of colleges, research institutes and factories.
