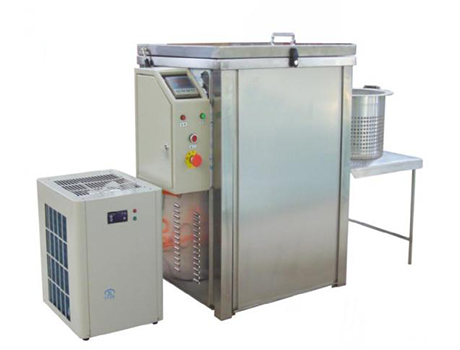

XHinstruments XHS-47 Methylene Chloride Tester

Container: Diameter: 350mm, Height: 260mm

Temperature range: 10C-50°C

Temperature control accuracy: ±0.5°C

Timer range: 0-99 min

Timer accuracy: 1s

Dimension: 660X660X800mm

Power Supply: 220V, 50Hz, Single Phrase

Product Description:

Methylene chloride tester/Dichloromethane soak testing machine is used to determine the resistance of unplasticised polyvinyl chloride (PVC-U) pipes to dichloromethane (methylene chloride) at a specified temperature (DCMT). The gelation of PVC is one of the most important product quality considerations as it has an influence on impact strength and resistance to internal pressure. There are various methods to determine the gelation level in PVC pipes and profiles; the most common one is to use Methylene chloride according to various standards. The tester complies with ISO 9852 and equivalent.

Test Standards:  ISO 9852:2006

Product Features:

1. Insulation system with the overall liner insulation, the material used two kinds of insulation materials, thermal insulation performance is very good, long-term use of energy-saving benefits significantly.

2. When heating or cooling, the outer box’s temperature is still close to room temperature, greatly improving the safety of the machine, while electricity consume can save more than 70%.

3. Overall material 304 stainless steel.

4. Built-in heater, high heat transfer efficiency.

5. Refrigeration device external connection.

6. Adopt gas spring open method.

7. The cover is sealed with silicone rubber and has no spill at high temperature.

8. Temperature control system using brand leakage protection device in time to protect people safe.
