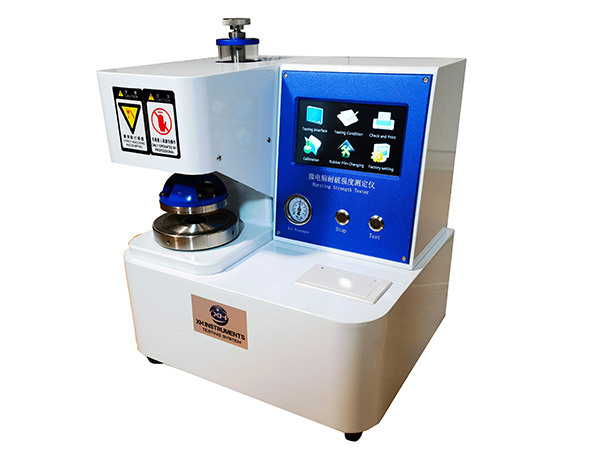

XHinstruments XHV-02A Paper Bursting Strength Tester (70-1570Kpa)

Test specimen: Paper

Power Supply: 220V±10 50HZ

Circumstance Temperature(°C) : 20±10

Relative Humidity(%): < 80

Hydraulic oil: Silicon Oil 85%, distilled water 15%

Horsepower: Shockproof motor 1/4HP

Induction way: Pressure converter

Indicating way: Touch screen display

The Diameter of upper Platen hole (mm): 30.5±0.05

The Diameter of Lower Platen hole (mm): 33.5±0.05

The dimension of rubber film (mm): Thickness 0.8---0.9

The resistance of rubber film (mm): When raise 9mm, 20-40

The tension between two plasten (Kpa): ≥430

Testing Range (Kpa): 70-1570

Resolution (Kpa): 0.1 Kpa

Oil (ml/min): 95±15

Dimension: 500×300×540 mm

Weight: 50kgs

Product Description:

Paper Bursting Strength Tester conforms to relevant standards .It uses pneumatic clamping sample , digital display and applies to measure bursting strength of paper , corrugated cardboard, leather, fabric and other sheet materials .

Test Standards:

ISO 2758, ISO 2759, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403

Product Features:

1. Adopt pneumatic clamping sample and USA microcomputer control technology, color touch screen display and the functions of test data processing and printout , also can display test curves.

2. Use stainless steel measurement head, precision screw driven, Aluminum-alloy panel, good quality copper oil cylinder.

3. Use Silicon oil as the driving force to break the specimen to keep mahine always clean.

4. When the specimen is broken, it automatically stores maximum.

5. It have statistic function.

6. Modern design concept of electro-mechanical integration , it has compact structure ,elegant appearance and convenient maintenance.

7. Have three units, Kpa, Psi and kg/cm2
