XHinstruments XHV-07 Package Drop Impact Tester (300-1200mm)

Drop Height: 300-1200mm

Specimen Max Weight: 50-60kgs

Specimen Max Dimension: 700mm×700mm×700mm

Drop Panel Area: 1000×1500mm

Dimension: 1000x1500x2030mm

Weight: 350kgs

Power: 220V, 50Hz

Product Description:

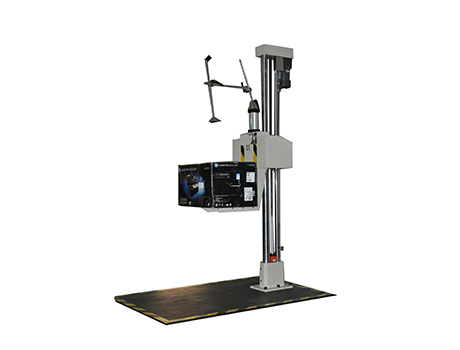

Package Drop Impact Tester is driven by a pneumatic cylinder controlling a single wing structure. It only takes a small space to operate and is ideally suited for testing the impact of cartons, luggage cases, suitcases, electric equipment, etc. It can do various test according to the test subjects requirements (surface, edges, Angle test) after place specimen in balance status.

Test Standards:  ISO 2248, JIS Z0202-87, ASTM D5276.

Product Features:

1. Pneumatic single arm dropping

2. Machine structure is stable and strong

3. Motor has brake function to adjust to a precise height

4. Screw transmission

5. Method of adjust the height: motor+Axel

6. Hydraulic pressure buffering device

7. Remote control rise, stop, down, drop action
