Test range: 20-6000mN
Resolution: 1mN
Indication Error: ±1%
Testing speed: 200°/min and 300°/min
Rated Bend Angle: 0°-90° (random setting), stiffness bending: 15° Crease bending: 90°
Load arm length: Stiffness: 50mm, Crease: 10mm
Stiffness Specimen: 70mmx38mm
Crease Specimen: 38mmx 36mm
Dimension of machine: 5 kg
Dimension of sample cutter: 320×90×110mm
Power Supply: AC 220V±10%, 50HZ
Product Description:

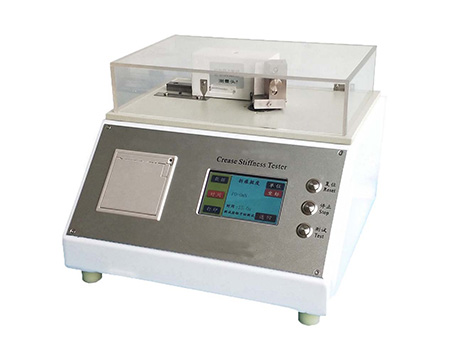

XHV-25B Crease Stiffness Tester is used to evaluate the crease stiffness and stiffness of cardboard.
With the Crease and Stiffness Tester, the Crease recovery is determined by the decrease in resistance offered by creased board after it is folded 90° at the crease measuring the recovery force after 15 seconds. Board Stiffness is determined by bending a 50mm length of board through a 15° angle.
Test Standards: ISO5628, ISO 2493, TAPPIT556, BS6965
Product Features:
Adopt high precision load sensor, the error can be controlled within 1%.
Double Grips, Multi Function, can measure paper and cardboard bending stiffness, also can measure cardboard crease stiffness.
Plastic cover can protect measurement head from damage, can preset angle, stainless steel clamp, long time use.
LCD screen operation system, Aluminum control panel
Check or delete the testing records randomly
Thermal printer, fast and clear printing
Calculate, count and print the testing result automatically
Can be connected to PC and output results with our professional software
