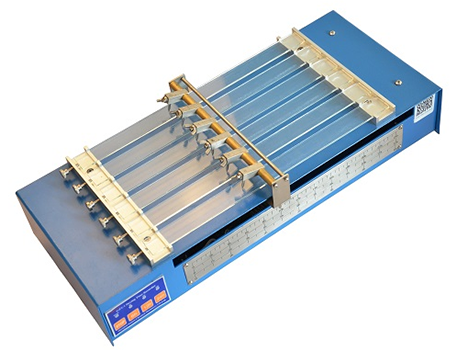

XHinstruments XHY-04 Drying Time Recorder

No. Of Needles: 6

Diameter of Needles: 1mm

Loading Weight: 11g

Stroke: 300mm

Time Setting: 6h,12h,24h

Dimension: 490mmx220mmx130mm

Weight: 10Kgs

Power Supply: 220V, 50Hz

Product Description:

The various stages of drying and curing that occur in films are easy to detect, but difficult to define in terms of chemical and physical principles. In order to evaluate them objectively it is necessary to use instrumentation under controlled conditions. We offers the versatile drying time recorder to help quantify the various stages of film curing and drying. Deliver reproducible results, and guarantee highest efficiency.

Test Standards: ISO 9117-4, ASTM D5895

Product Features:

Simultaneous testing of 6 samples-saves time

Three different speeds: 6-12-24 hrs-for any application
