Capacity: 0-100kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 0.5mV/V 0-3kg
1.0-1.5mV/V 5-100kg
Recommended excitation: 5V-10VDC
Maximum excitation: 10VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: >5000MQ/100VDC
Input impedance: 50±5Ω(1000±100)
Output impedance: 350±5Ω(1000±100Ω)
Creep(30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2%F.S.
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x4m
Life: Full scale more than 1 million times

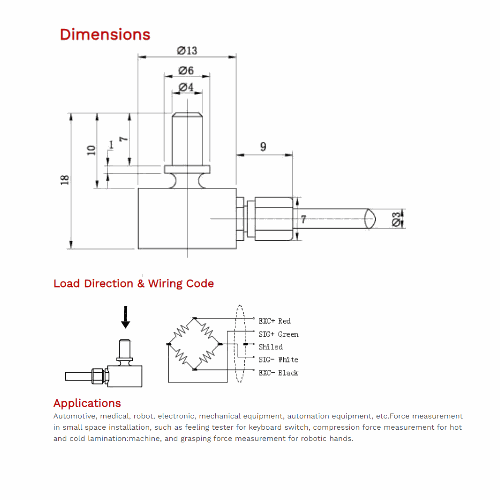

Cable Connection: Ex+: Red； Ex-: Black； Sig+: Green； Sig-: White
Detail
