Capacity: 0-50 Kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5VDC
Maximum excitation: 10VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.25%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/1000VDC
Input impedance: 350 ± 5Ω (1000±100)
Output impedance: 350 ±5Ω (1000±100)
Creep(30min): 0.1%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±2 mV/V
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: φ1.6*4m φ2*4m
Life: Full scale more than 1 million times

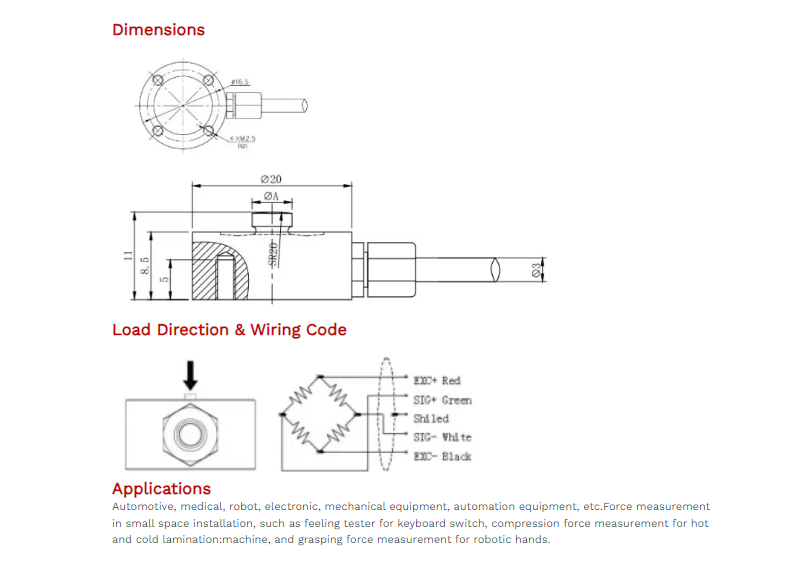

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
Detail
