Capacity: 0-150 Kg
Material: Aluminum alloy
Nonlinearity: 0.5%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP66
Compensated temp range: -10~40°C
Hysteresis: 0.1%F.S.
Operating temp range: -20~80°C
Repeatability: 0.1%F.S.
Insulation: ≥2000MΩ/50VDC
Input impedance: 750±30Ω
Output impedance: 700±10Ω
Creep(30min): 0.1%F.S.
Temp effect on output: 0.05%F.S./10°C
Zero balance: ±2 %F.S.
Temp effect on zero: 0.05%F.S./10°C
Limit load: 120%
Breaking load: 200%
Cable size: Ø4x4m
Life: Full scale more than 1 million times

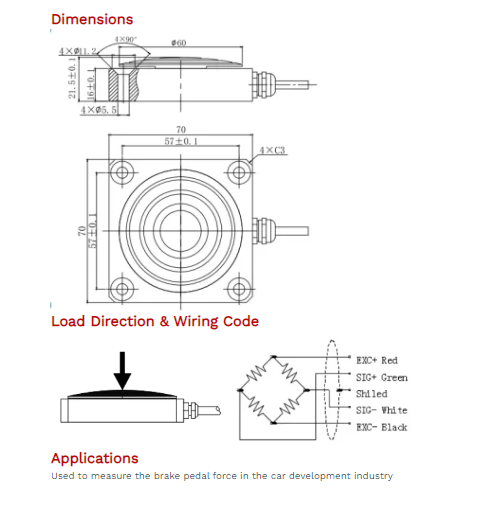

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
Detail
