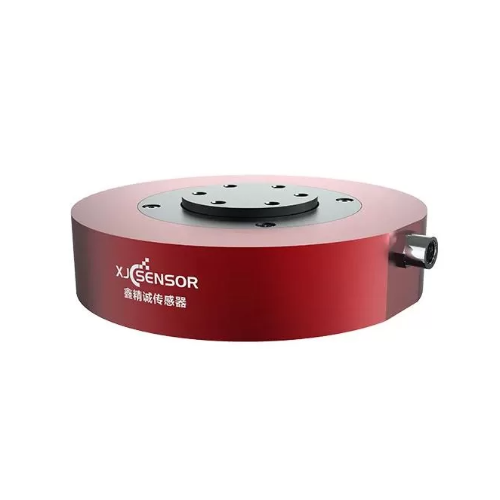

XJCSENSOR X-DT-1001 Dynamic Torque Sensor (200N.m)
ManufacturerXJCSENSOR(View more products from this manufacturer)
ModelX-DT-1001
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output sensitivity: 1.0±10%mV/V
Max rotate speed: 200r/min
Non-linearity: ≤±0.2%F.S.
Repeatability: ≤±0.1%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~60°C
Compensated temp range: -10~40°C
Insulation resistance: ≥2000MΩ/50VDC
Recommended excitation voltage: 5-10V
Limit load: 200%F.S.
Cable size: φ4x4m
Protection class: IP64
Temp effect on output: ≤±0.2%F.S./10℃
Temp effect on zero: ≤±0.2%F.S./10℃
Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
Details
