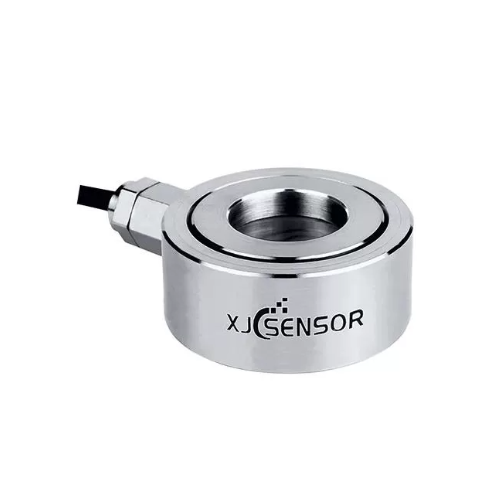

Capacity: 0-200 kg
Material: Stainless steel
Nonlinearity: 0.5%F.S.
Rated output: 1.0±10%mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.5%F.S.
Operating temp range: -20~80°C
Repeatability: 0.5%F.S.
Insulation: ≥5000MΩ/100VDC
Input impedance: 350±5Ω（700±30Ω）
Output impedance: 350±5Ω（700±5Ω）
Creep(30min): 2%F.S.
Temp effect on output: 0.1%F.S./10°C
Zero balance: ±2 %F.S.
Temp effect on zero: 0.1%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø2x4m
Life: Full scale more than 1 million times

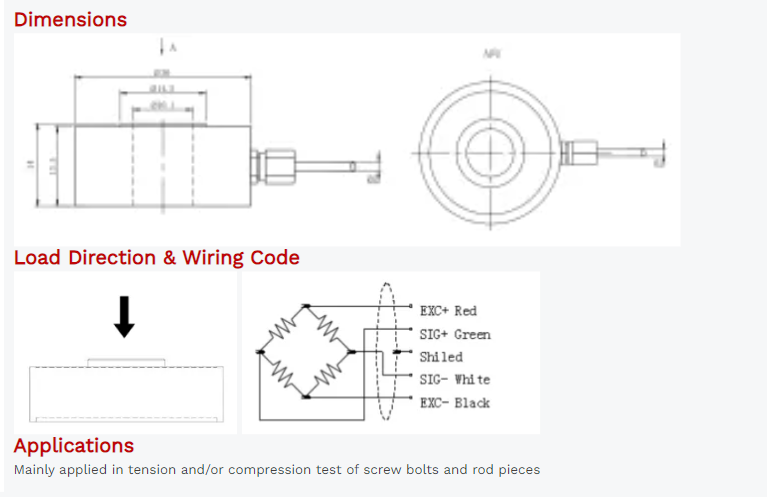

Cable Connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White
