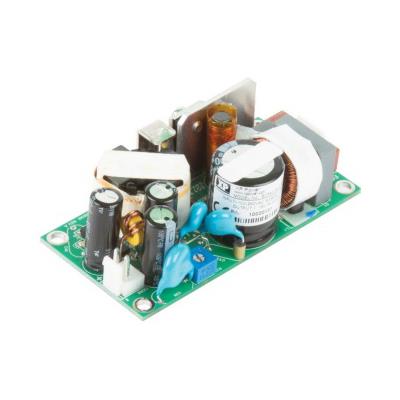

XP Power ECF40US36 AC-DC Converter AC-DC, 40W, 3"X1.5", GREEN POWER

Name: XP Power ECF40US36 AC-DC Converter AC-DC, 40W, 3"X1.5", GREEN POWER
Brand: XP Power

ModelECF40US36

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 38.1 mm (1.5 in)

Height: 28 mm (1.102 in)

Length: 76.2 mm (3 in)

Industry: Medical, Industrial

Approvals: CSA, EN60601-1, EN60950-1, IEC60601-1, IEC60950-1, UL60950-1

Compliance: CSA, EN60601-1, EN60950-1, IEC60601-1, IEC60950-1, UL60950-1

Efficiency: 90 %

Unit Weight: 69 g

Output Power: 40 W

REACH - SVHC: Details

Input Voltage: 80 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 1.11 A

Output Voltage-Channel 1: 36 VDC

Operating Temperature Range: - 25 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
