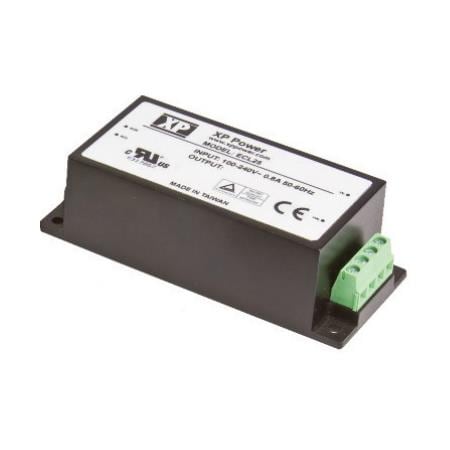

XP Power ECL15UD02-S AC-DC Converter AC/DC, DUAL, 15W, SCREW TERMINALS

Name: XP Power ECL15UD02-S AC-DC Converter AC/DC, DUAL, 15W, SCREW TERMINALS
Brand: XP Power

ModelECL15UD02-S

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 34.5 mm

Height: 26.4 mm

Length: 75 mm

Industry: Industrial

Approvals: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Compliance: CSA/cUL, EN60950-1, IEC60950-1, UL60950-1

Efficiency: 82 %

Unit Weight: 120 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 500 mA

Output Current-Channel 2: 500 mA

Output Voltage-Channel 1: 15 VDC

Output Voltage-Channel 2: - 15 VDC

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
