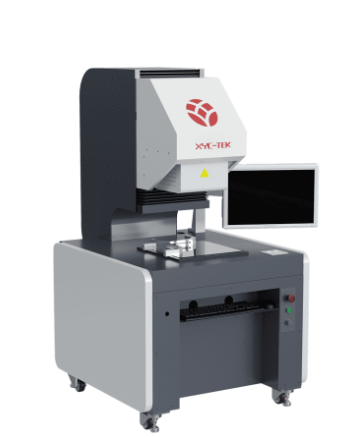

Xyc-tek UNG-FAST-192 Instant(One-Click) Video Measuring Machine (192 x 128 mm, ≤0.005 mm)

Name: Xyc-tek UNG-FAST-192 Instant(One-Click) Video Measuring Machine (192 x 128 mm, ≤0.005 mm)
Brand: Xyc-tek

ModelUNG-FAST-192

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Dimension: 900 x 950 x 1650 mm

Weight: 350 kg

Max Recommended Stage Load: 20 kg

Measured range: 192 x 128 mm

Z Axis Travel: 50 mm

Measurement Accuracy: ＜0.01 mm

Measurement Speed: 1 s/pcs

Repeatability: ≤0.005 mm

GRR: ＜10 %

Relevance: ≤0.01 mm

Optical System:

Ultra-high resolution CCD camera

High definition dual telecentric corner lens

Inspection distance: 400mm

Illumination:

Optional surface light: coaxial light, ring light, strip light

Collimating backlight

Brightness adjustable

Software: Professional image measurement software CVI Pro 2021 V1.0

Power: AC100V-220V, 50/60Hz, 2KW
