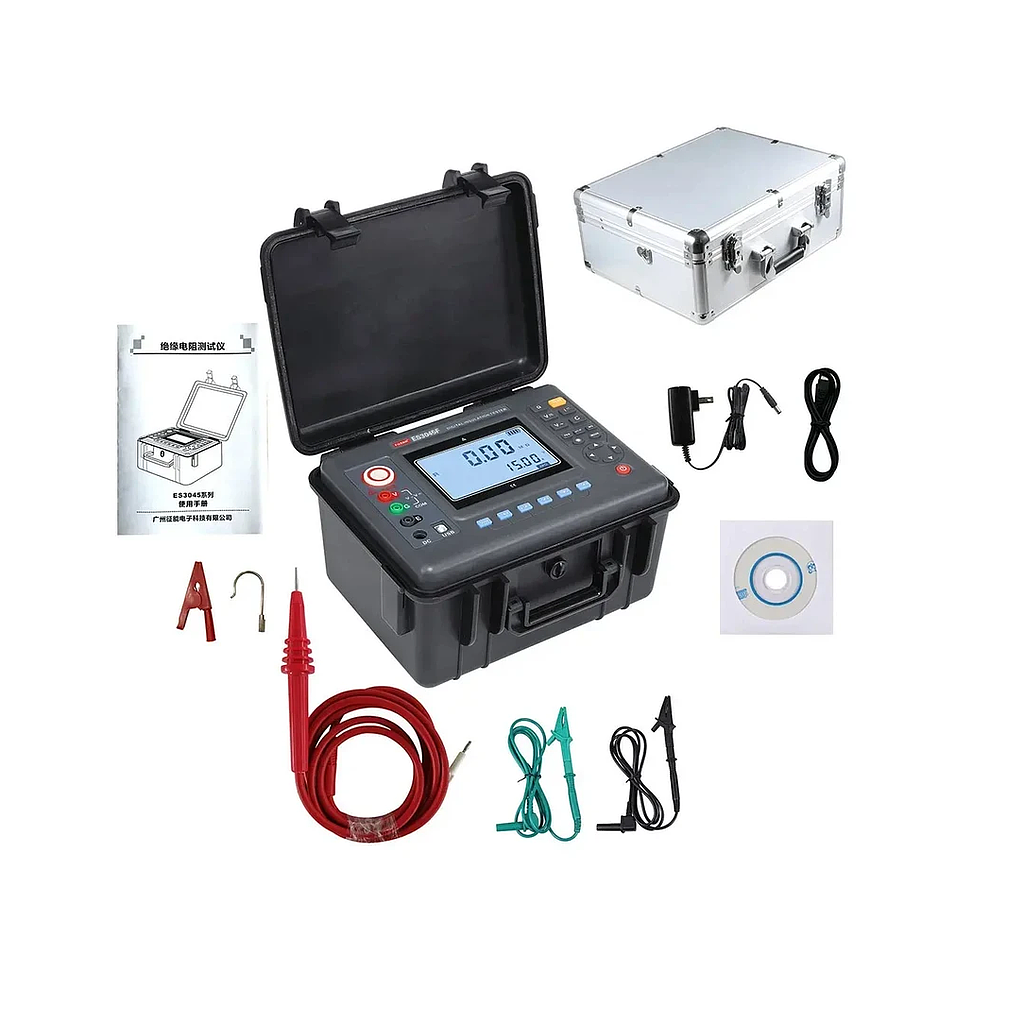

Function: Insulation resistance test, voltage test
Baseline Conditions: 23ºC±5ºC,75%rh below
Rated Voltage: 500/1000/2500/5KV/10KV/15KV
Insulation Resistance Range: 0.01MΩ~50TΩ; Resolution:0.01MΩ
Measuring Voltage (V): Rated voltage×(1±10%)
Capacitance: 1nF-50uF
Output Short Circuit Current: ≥6mA@10KV
Absorption Ratio And Polarization Index Measurements: with
Power Supply: 12.6V Rechargeable lithium battery
Backlight: Controllable gray and white screen backlight, suitable for use in dark places
Display Mode: 4-digit large LCD display, gray and white screen backlight
Lcd Display Size: 108mm×65mm
Meter Size: length width height:277.2mm×227.5mm×153mm
Usb Interface: With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Communication Line: USB 1 communication line
Test Lead: High voltage bar red 3 meters, high voltage test line black 1.5 meters, green line 1.5 meters
Data Storage: 500 groups, flashing "FULL" symbol indicates that the storage is full
Data Access: Data access function: "MR" symbol display
Overflow Display: Over range overflow function: "OL" symbol display
Alarm Function: If it is greater than or less than the set value, an alarm prompt will be issued.
Power Consumption: Standby: 30mA Max (backlight off), turn on the backlight: 42mA Max, Measurement: 200mA Max (backlight off)
Weight: 2750g
Battery Voltage: Low battery voltage, showing low battery symbol
Automatic Shut-Down: The meter shuts down after 15 minutes of inactivity
Insulation Resistance: ≥50MΩ(between measurement line and enclosure)
Voltage Withstand: AC3kV/50Hz 1min
Operating Temperature And Humidity: -10ºC~+50ºC<85%RH
Storage Temperature And Humidity: -15ºC~+55ºC<90%RH
Suitable For Safety Regulations: IEC61010-1,IEC1010-2-31,IEC61557-1/5,IEC60529(IP54)
