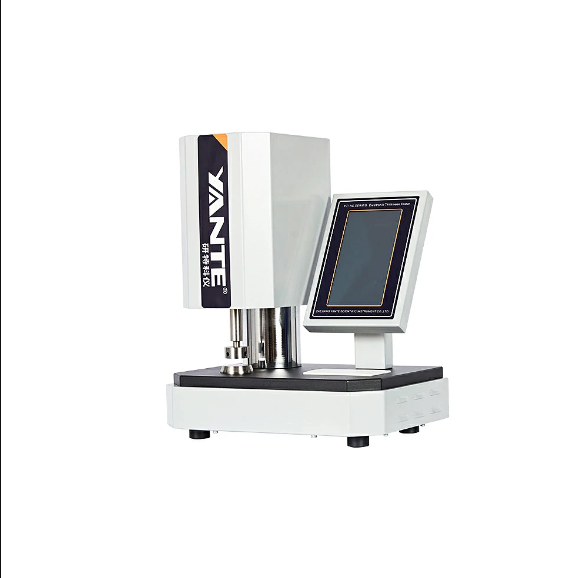

Yante YT-HE Electronic Thickness Tester (0～10mm)

Power Supply: AC100～240V，50/60Hz 50W

Working Environment:

Temperature: 10~35℃

Humidity: ≤85％

Display: 7 inch color touch screen

Measuring range: 0～10mm

Resolution: 0.001mm

Indication error: ±0.003mm or ±0.5％

Indication variability: ≤0.003mm or ≤0.5％

Parallelism between measuring surfaces: ≤0.0004mm

Contact area: 1000±5 mm²

Contact pressure: 2±0.1kPa

Probe descending speed: 0.5～10 mm/s Adjustable

Print: Built-in thermal printer

Communication Interface: RS232 (default) (USB, WIFI optional)

Dimension: 325×310×485 mm

Net Weight: 24kg
