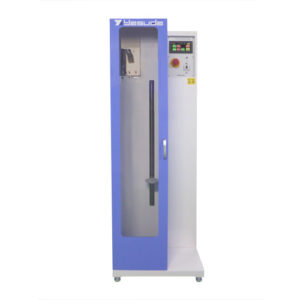

Yasuda 161 Spring Elongation Tester

Specimen: L1.2 m, Conductor Diameter φ0.25 to φ1.6 mm

Mandrel Rotation Speed: 50 rpm

Mandrel Diameter: φ2.5 to φ16 mm (Conductor Diameter φ × 10)

Weight: (Specimen Cross Section × 700) g

Holder Stroke: Max. 780 mm

Holder Speed: 50 mm/s

Timer: 60 sec Count

Option: Automatic Specimen Cutting Device, Safety Cover

Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz

Dimensions/ Weight (Approx.): W490 × D500 × H1,500 mm/ 70 kg
