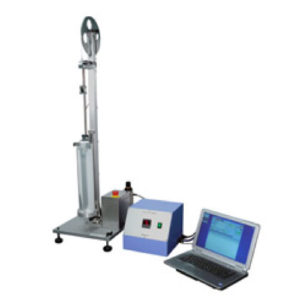

Yasuda 309-AUTO Fenchel Expansion and Contraction Tester (Automatic)

Specimen: W15 mm, L150 mm

Chuck Distance: Max. 100 mm (Pitch 5 mm)

Weight: 5 g, 10 g, 20 g, 50 g: 1 pc each

Displacement Measurement: Digital Encoder

Temperature Measurement: Digital Temperature Controller

Elevation Method: Air Cylinder

Software: Windows Compatible

Accessory: Plastic Beaker

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Air Source: 0.5 MPa or More

Dimensions/ Weight (Approx.):

+ Tester Body: W400 × D400 × H1,400 mm/ 20 kg

+ Control Box: W310 × D300 × H250 mm/ 8.5 kg
