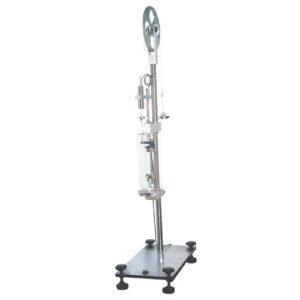

Yasuda 309 Fenchel Expansion and Contraction Tester

Specimen: W15 mm, L150 mm

Chuck Distance: Max. 100 mm (Pitch 5 mm)

Weight: 5 g, 10 g, 20 g, 50 g: 1 pc each

Displacement Measurement: Differential Transformer: Scale 0.01 mm, Stroke 0 to ± 10 mm, 4 Digits Digital Display

Accessory: Glass Beaker

Power Source: AC 100 V, 1-Phase, 3 A, 50/60 Hz

Dimensions/ Weight (Approx.):

+ Tester Body: W250 × D300 × H1,050 mm/ 30 kg

+ Control Box: W400 × D300 × H150 mm/ 6 kg

Datasheet
