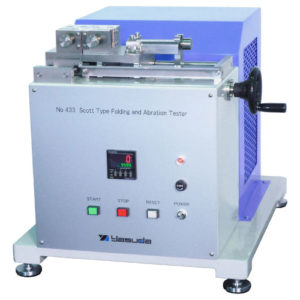

Yasuda 433 Scott Type Crease-Flex Abrasion Tester

Specimen: 25 × 120 mm (Standard 20 mm)

Chuck Distance: 0 to 50 mm

Pressing Load: 4.9 to 49 N (0.5 to 5 kgf) (Spring Loaded or Dead Weight) (Standard 9.8 Ｎ)

Abrading Distance: 0 to 60 mm (Standard 40 mm)

Abrading Speed: 120 ± 2 times/min

Counter: 6 Digits Preset Counter

Option: Safety Cover

Power Source: AC 100 V, 1-Phase, 15 A, 50/60 Hz

Dimensions/ Weight (Approx.):

+W400 × D500 × H550 mm/ 60 kg

*We also provide Liquid Immersion Types.

Datasheet
