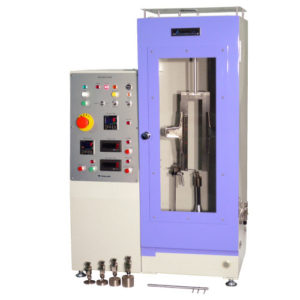

Test Method: Alternative Method (Vertical Burner Method)
Burning Box: Inner Diameter:W304.8 × D304.8 × H762 mm
Specimen: 70 × 300 mm
Burner Angle:
+ Busen Burner, Inner Diameter φ9.5 mm
+ Flame Height 38 mm, Attaching Vertical
Burner Movement: Automatic Sliding
Timer:
+ Ignition Timer: Max. 999.9 sec (Preset method)
+ Flaming Timer: Max. 99,999.9 sec (Preset method)
+ After-flame Timer: Max. 99,999.9 sec (Running method)
+ After-glow Timer: Max. 99,999.9 sec (Running method)
Igniter: Automatic Ignition (Plug Method)
Load: 1.11 N, 2.23 N, 3.33 N, 4.45 N (1 pc Each)
Accessories: Specimen Holder, Flame Height Measuring Stand, Scale
Power Source: AC 100 V, 1-Phase, 5 A, 50/60 Hz
Heat Source: Liquid Petroleum Gas or City Gas
Dimensions/ Weight (Approx.): W590 × D330 × H930 mm/ 55 kg
