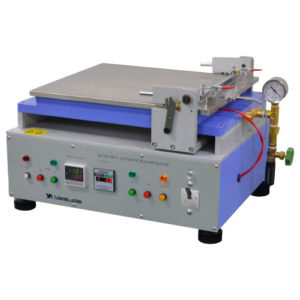

Surface Plate:
+ A4 size: W298 × L392 mm (Effective Range, Material SUS-303)
+ A3 size: W398 × L496 mm (Effective Range, Material SUS-303)
Suction Area:
+ A4 size: W200 × L285 mm, φ1 mm: 110 pcs
+ A3 size: W300 × L420 mm, φ1 mm: 210 pcs
Temperature Range: Max. 120 °C
*Only a single temperature can be selected.
Coating Speed: 20 to 300 mm/s (60 Hz), 20 to 260 mm/s (50 Hz), Length Setting Sensor Attached
Accessories: Weights for Barcoater (3 kinds), Jig for Applicator, Scraper, Spatula
Option: Vacuum Pump, Barcoater, Applicator
Power Source: AC 100 V, 1-Phase, 10 to 15 A, 50/60 Hz
Dimensions/ Weight (Approx.) :
+ A4 size: W500 × D410 × H410 mm/ 50 kg
+ A3 size: W620 × D510 × H410 mm/ 65 kg
