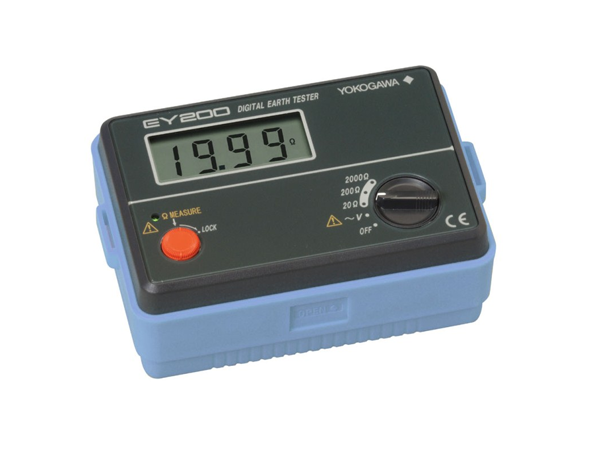

YOKOGAWA EY200 Earth Tester Digital

Display: LCD Digital Display:1999-count digital reading

Measuring Range: Earth Resistance: 2000Ω LSD:0.01 to 1Ω; Earth Voltage: 200V

Accuracy: Earth Resistance: 20Ω range: ±2%rdg±0.1Ω/ 200Ω range: ±2%rdg±3dgt/ 2000Ω range: ±2%rdg±3dgt; Earth Voltage: ±1%rdg±4dgt

Measuring Frequency: Approx. 820Hz

Measuring Current: Approx. 3mA (at 20Ω range)

Battery Life: Approx. 4.5hours (at 5 second measuring 3300 times)

Operating Temp. and Humidity: 0~40°C, 85%Rh or less

Dimensions: Approx. 102×158×70mm

Weight: Approx. 550g

Standard Accessories: 3-pole Test Lead (Model 98074), Earth Spikes (for EY200) (Model 98070), 2-pole Test Lead Set (Model 98075), Soft Case (Model 93041), Shoulder Belt (for EY200) (Model 99018), Six AA (R6) dry cells, User’s manual
