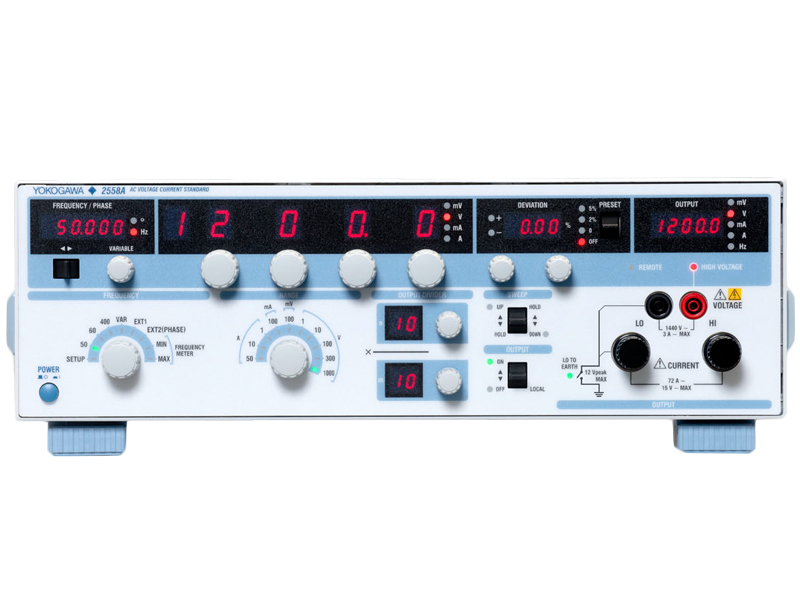

Yokogawa 2558A AC Voltage Current Standard
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
AC Voltage:
Output range of the specified accuracy: 1.00 mV to 1200.0 V
Accuracy (50/60 Hz) ± 400 ppm
Frequency of the specified accuracy: 40 to 1000 Hz
AC Current:
Output range of the specified accuracy: 1.00 mA to 60.00 A
Accuracy (50/60 Hz) ± 500 ppm
Frequency of the specified accuracy: 40 to 1000 Hz
Frequency:
Output range: 40 to 1000 Hz
Accuracy: ± 50 ppm
Max. output Approx. 36 VA (60 A/0.6 V)
Stability: ± (20 ppm of setting + 30 ppm of range)/h
Dimension: (mm) 426 (W) × 132 (H) × 400 (D)
Output range of the specified accuracy: 1.00 mV to 1200.0 V
Accuracy (50/60 Hz) ± 400 ppm
Frequency of the specified accuracy: 40 to 1000 Hz
AC Current:
Output range of the specified accuracy: 1.00 mA to 60.00 A
Accuracy (50/60 Hz) ± 500 ppm
Frequency of the specified accuracy: 40 to 1000 Hz
Frequency:
Output range: 40 to 1000 Hz
Accuracy: ± 50 ppm
Max. output Approx. 36 VA (60 A/0.6 V)
Stability: ± (20 ppm of setting + 30 ppm of range)/h
Dimension: (mm) 426 (W) × 132 (H) × 400 (D)
