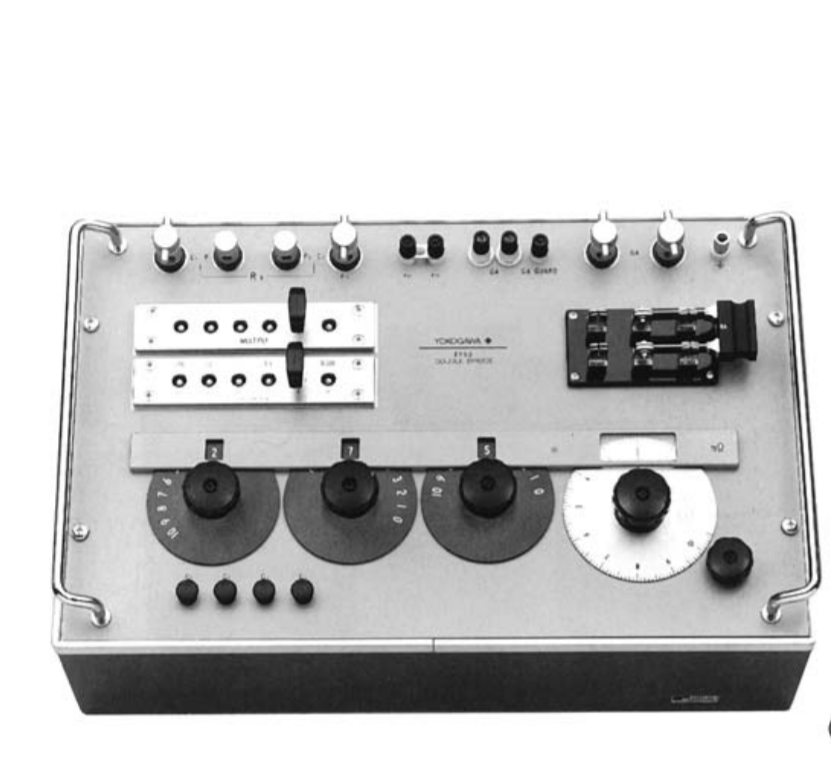

Manufacturer: Yokogawa
Model: 2752
Warranty: 12 months
Measuring Range:0.1000mΩ to 111.10Ω in five digits
Measuring Arm:(At Multiplier x1) 100mΩ x 10 + 10mΩ x 10 + 1mΩ x10 + (0.05 to 1.05mΩ)
Multiplier:x 0.001 x 0.01 x 0.1 x 1 x 10 x 100
Accuracy:At resistances potential: Leads and current leads less then 10mΩ/wire; ±(0.03Ω of reader +1µΩ) at temperature at 10 to 35°C±2.5°C; ±(0.05Ω x multiplier +0.01mΩ) at temperature at 10 to 40°C.
Insulation Resistance:More than 100MΩ at 500V DC between the electric circuit and the case.
Dielectric Strength:500V AC for one minute between electric circuit and case.
Case:Grey metal Case, with plastic feet and carrying handles.
Current Rating:30A at x 0.001, 10A at x 0.01, 3A at x 0.1, 0.5A at x 1, 0.15A at x 10, 0.05A at x 100
Dimensions:497（W）×316（H）×140（D）mm (excluding protrusions)
Weight:Approx. 11.5kg
