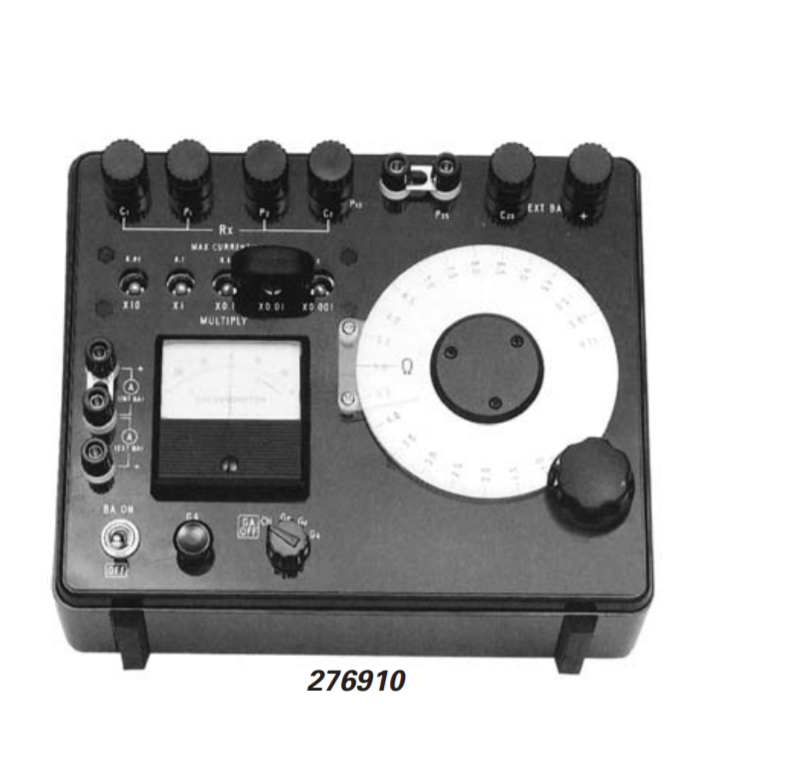

Yokogawa 2769 Precision Double Bridge (0,1mΩ ~110Ω)

Measuring Range:0.1mΩ to 110Ω

Measuring Arm:1.00 to 11.00Ω at x1

Multiplier:0.005mΩ at x 0.0001; 0.05mΩ at x 0.001; 0.5Ω at x 10; 0.5mΩ at x 0.01; 50mΩ at x 1; 5mΩ at x 0.1

x 0.0001, x 0.001, x 0.01, x 0.1, x 1, x 10 (plug-in system)

Accuracy:±(0.05Ω x multiplier +0.01mΩ) at temperature of 5 to 35°C (41 to 95°F) and humidity range of less then 85%.

Galvanometer (Built-In): Galvanometer (built-in) electronic DC galvanometer, Voltage Sensitivity approx. 20μV/div.

Sensitivity Changeover

G0 - Approx. 11kΩ (input Resistance)

G1 - Approx. 1/11 of G0 Sensitivity

G2 - Approx. 1/11o of G0 Sensitivity

Power Source: 1 9V Battery (JIS6F22)

Battery life: Approx. 300 Hours

Operating Temperature Range:5 to 35°C (41 to 95°F)

Humidity Range:85% Max, Relative Humidity

Dimensions:227（W）×183（H）×93（D） mm (excluding protrusions)

Weight:Approx. 2.6kg
