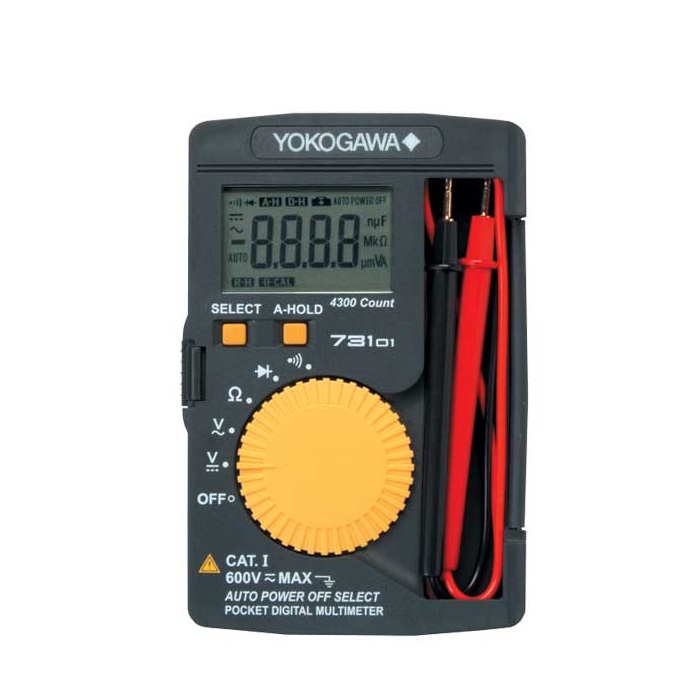

YOKOGAWA 73101 Pocket Digital Multimeter

DC Voltage Measurement: 400mV, 4V, 40V, 400V, 600V; 0.7 + 1 at 4V

AC Voltage Measurement: 4V, 40V, 400V, 600V; 2.0+5

Resistance Measurement: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ; 1.2 + 2 at 400Ω, 4kΩ, 40kΩ, 400kΩ

Continuity Check: 400Ω

Diode Test: 2V; 1.5 + 1

Display: Digital display: 4300-count digital reading

Measuring Rate: Digital display: Approx. 2 times/sec

Power Supply :Two LR44 dry cell

Battery Life:Approx. 200 hours (for continuous DC voltage measurement)

Auto Power Off:The power is automatically turned off when no operation is made for approx. 20 minutes (can be disabled).

Dimensions:76 (W) x 117 (H) x 18 (D) mm

Weight:Approx. 110 g (including batteries)

Standard Accessories:User's manual: 1, LR44 dry cells: 2
