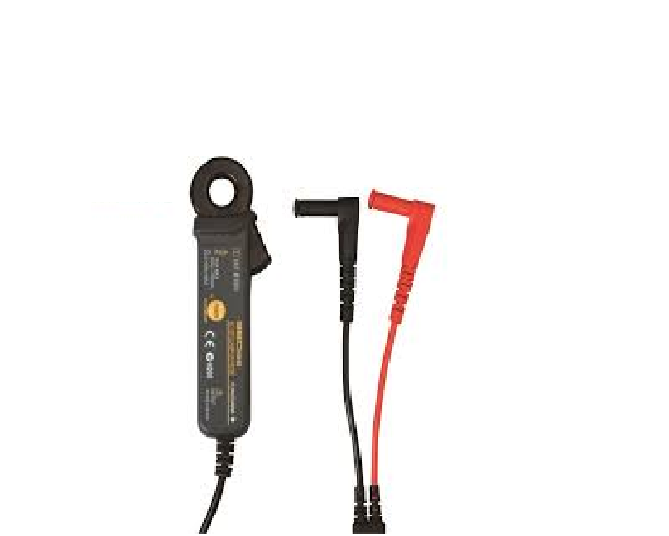

Yokogawa 96095 Current clamp probe

Measurement range:AC 0.1 to 130Arms;DC 0 to 180A

Output voltage:AC/DC 10mV/A

Accuracy (Input: sine wave) (*1)50/60Hz:±(1.2%rdg+0.4mV), 40 to 1kHz:±(2.5%rdg+0.4mV);±(1.2%rdg+0.4mV) (*2)

Temperature & humidity range (Guaranteed accuracy):23±5ºC, relative humidity 85% or less (no condensation)

Operating temperature & humidity range:-10 to 55 ºC , relative humidity 85% or less(no condensation)

Storage temperature & humidity range:-30 to 70 ºC , relative humidity 85% or less (no condensation) (*3)

Temperature coefficient(Accuracy at 23±5ºC×±0.1%rdg)/ºC should be added.(Temperature ranges: -10 to 18ºC and 28 to 55ºC)

Output impedance:Approx 10Ω or less

Location for use:Altitude 2000m or less, indoor use

Applicable standards:EN 61010-1 CAT. III 300V, Pollution degree 2, EN 61010-2-032, EN 61326-1 Class B, EN55011 Class B Group 1, EMC Regulatory Arrangement in Australia and New Zealand, Korea Electromagnetic Conformity Standard, EN50581 Monitoring and control instruments

Withstand voltage:AC3540V (RMS 50/60Hz) for 5 sec between Jaw and enclosure between enclosure and output terminal, between Jaw and output terminal

Insulation resistance:10MΩ or more/1000V between Jaw and enclosure, between enclosure and output terminal, between Jaw and output terminal

Power source:DC3V(size AAA alkaline battery LR03×2pcs)

Auto-power-off:20±8 min after powering on the instrument

Low battery warning:2.2±0.2V or less(*4), red LED flash

Current consumption:25mA or less (at battery voltage 3V)

Continuous use:Approx.35 hours(till a low battery indicator flashes), Approx.5 hours (from low battery till power off )

Conductor size:Max φ12mm

Cord length:Approx. 120cm

Dimensions:127(L)×42(W)×22(D)mm

Weight:Approx. 140g

Accessories:User's manual, battery, Soft case
