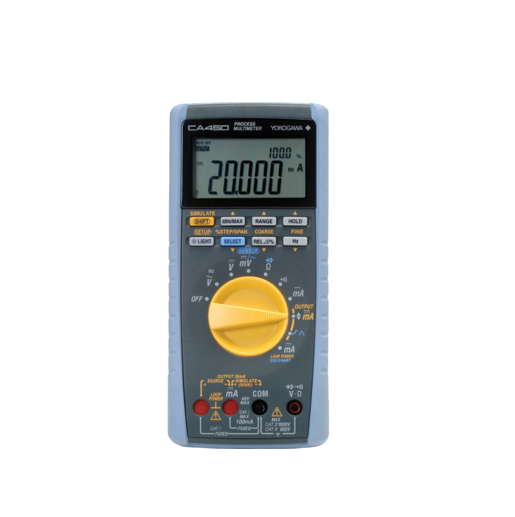

YOKOGAWA CA450 Process Multimeter

DC Voltage Measurement: 600 mV, 6 V, 60 V, 600 V, 1000 V; 0.09%+1 at 6 V, 60 V, 600 V

AC Voltage Measurement: 600 mV, 6 V, 60 V, 600 V, 1000 V; 0.5%+5 50/ 60 Hz

DC Current Measurement: 30 mA, 100 mA; 0.05%+2

Resistance Measurement: 600Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ; 0.2%+1*1 at 6 kΩ, 60 kΩ, 600 kΩ

Continuity Check: 600Ω

Diode Test: 2V; 1%+2

Frequency Measurement in Hz: 10 Hz to 199.99 Hz, 90 Hz to 1999.9 Hz, 0.9 kHz to 19.999 kHz; 0.005%+1

Peak Hold: Accuracy ±100 digits

DC Output: 20 mA; 0.05% of range

24 V Loop Power Supply: 24 V

Display:5-digit LCD (7 segment)

Storage temperature and humidity: -40°C to 70°C (70% RH or less) with no

condensation

Temperature coefficient (typ.): In the ranges of -20°C to 18°C and 28°C to 55°C, add the accuracy of 23°C ± 5°C × 0.1/°C.

Power supply: Four AA-size alkaline batteries (1.5 V LR6)

Battery life: When using alkaline batteries

+DC voltage measurement: Approx. 140hours

+DC current output (SIMULATE): Approx.140 hours

+DC current output (SOURCE): 12 mA (500 Ω load): Approx. 10 hours

Insulation resistance: 100 M Ω or greater at 1000 VDC

Withstand voltage: 6.88 kVAC for five seconds (between the input terminals and the case)

External dimensions: Approx. 90 (W) × 192 (H) × 49 (D) mm

Weight: Approx. 600 g (including the batteries)

Standard accessories: AA-size alkaline batteries x4,Test leads (98073)x 1 set,Lead cables (98064)x 1 set,Fuses (inside the CA450) 440 mA/1000 V (99042)x 2,User’s manual x1,Blank coverx 1
