AC current: 200mA/2A/20A, 200A, 1000A(0～500A), 1000A(501～1000A); 1.0+2 (50/60Hz) at 200mA/2A/20A WIDE(40～1kHz)
AC output: 200mA/2A/20A(0～200mV), 200A(0～200mV), 1000A/(0～50mV/0～500A), 1000A/(50～100mV/501～1000A); 2.0 at 200mA/2A/20A(0～200mV) WIDE(40～1kHz)
DC output: 200mA/2A/20A(0～200mV), 200A(0～200mV), 1000A/(0～50mV/0～500A), 1000A/(50～100mV/501～1000A); 3.0 at 200mA/2A/20A(0～200mV) WIDE(40～1kHz)
Method of detectionMean value
Display: LCD(Digital display:1999 counts)
Response time: Approx. 1 second
Range switching:Range selection Auto or Manual
Data hold: On all range
Peak hold: On all range
Operating temperature and humidity :-10-50oC 80% RH or less (no condensation)
Effect of external magnetic field: 15mA or less in proximity to a 10mm-dia conductor carrying 100A
Effect of conductor position: 2% or less
Effect of residual current: 10mA or less in proximity to a 10mm-dia conductor carrying 100A
Safety standard:Conforms EN61010-1, EN61010-2-032
Circuit voltage:600Vrms or less
Withstanding voltage:4240V AC for 5 sec
Power supply:6F22(006P)9Vx1 or 6LR61x1
Batttery life:Approx. 60 hours (continuous)
Consumed current: Approx. 5mA
Diameter of measurable conductor: 68mm at maximum
Dimensions:Approx. 129(W)x248(H)x55(D)mm
Weight: Approx 570 g (including the battery)

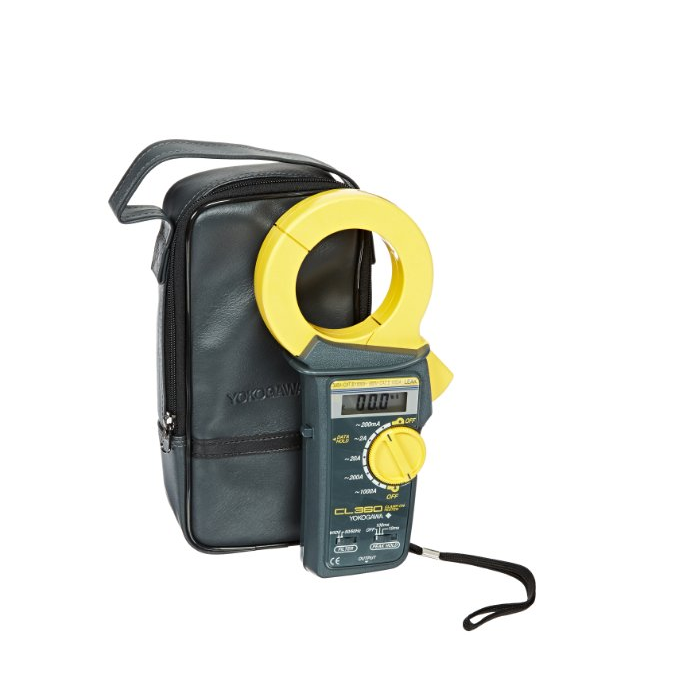

Accessories:User's manual, batteries, carrying case(93031)
