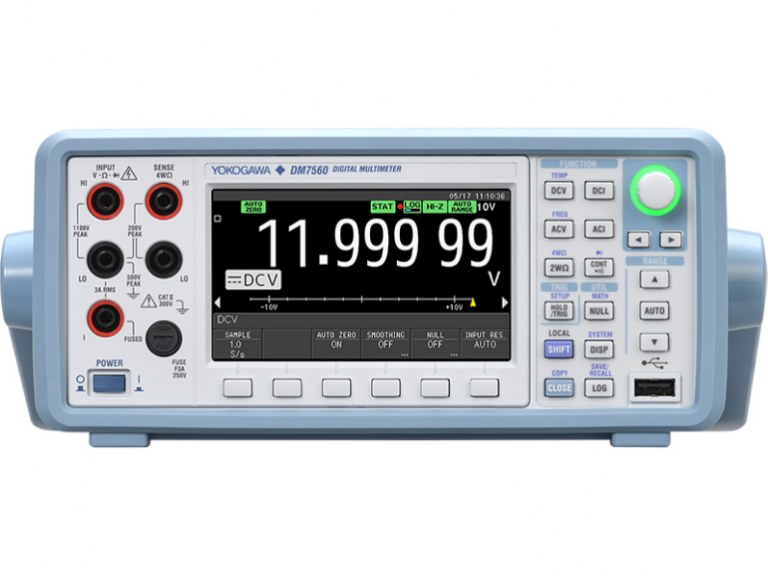

YOKOGAWA DM7560 Digital Multimeter

DC voltage (DCV) 100 mV, 1 V, 10V, 100V, 1000V

AC voltage (ACV) 100 mV, 1 V, 10V, 100V, 750V

DC current (DCI) 1 mA, 10mA, 100mA, 1 A, 3A

AC current (ACI) )1 A, 3A

2-terminal resistance (2 WΩ), 4-terminal resistance (4 WΩ): 100 Ω, 1 kΩ, 10 kΩ,100 kΩ,1 MΩ, 10 MΩ, 100 MΩ

Continuity test

Diode test

Temperature (TEMP, TC: Thermocouple)

R: −50~+1765°C

K (CA): −200~ +1370°C

T (CC): −200~ +400°C

J (IC): −200~ +1200°C

E (CRC): −200 ~ +1000°C

Temperature (TEMP, RTD: Resistance temperature detector)

Pt100 −200 to +850

JPt100 −200 to +510

Frequency (FREQ): 3~300 kHz

Trigger functionWarm-up time: 1 hour after power on

Calculation guaranteed temp/humid: 0°C to 50°C (40°C and no dew allowed below the moisture amount of 80%RH)

Storage temp/humid: −20°C to +60°C (40°C and no dew allowed below the moisture amount of 90%RH)

Power supply: AC100 V/115 V/220 V/240 V ±10%, 50 Hz/60 Hz

Power consumption: 21 VA or less (option included)

Withstand voltage: DC ±500 V (between LO terminal and ground)

Installation (over voltage) category: Category II (local level, electric product and portable product)

Pollution level: 2 (Do not use it at environment which exists pollutant of electroconductive)

Screen LCD: Size 4.3 inch

Number of dots: 480 dots × 272 dots (The LCD may include a few defective dots. 7 dots or less.)

Color: 16-bit, 65536 colors

Drive system: TFT active matrix

Back light: LED

Dimension: 225 (W) × 100 (H) × 366 (D) mm (protuberance such as leg, handle and knob excluded)

Weight: Approx. 3.0 kg
