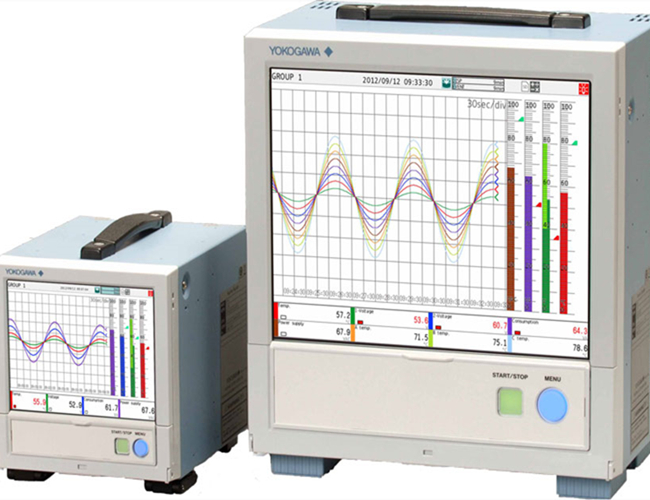

Yokogawa GP10 Portable Touch screen

Panel thickness: 2 to 26 mm

Display: 5.7" TFT color LCD ((640 × 480 dots)

Touch screen: 4 wire resistive touch screen, 2-point touch detection

Max. no. of connectable modules: 3 (When mounted on expansion module: 2) ( The maximum number of connectable modules is limited by the maximum number of I/O channels,and differs depending on the types and combinations of modules.)

Analog input channels: Standard: 30, 100 (with expansion unit)

No. of mathematical channels: 50

No. of communication channels: 50

Internal memory (flash memory): 500MB

External storage media: SD memory card (up to 32 GB) (format: FAT32 or FAT16), 1 GB included USB interface (/UH option): USB 2.0 compliant (external storage media: USB flash memory)

(Keyboard/mouse: HID Class Ver. 1.1 compliant)

Other functions: Security functions: Key lock function, login function, Clock functions: With calendar function, accuracy: ± 5 ppm (0 to 50°C),LCD saver function

Rated supply voltage: 100 to 240 VAC (allowable power supply voltage range: 90 to 132 VAC, 180 to 264 VAC); 12 VDC (allowable power supply voltage range: 10 to 20 VDC, only for a GP10 of power supply voltage code "2")

Rated supply frequency: 50/60 Hz

Power consumption: Max.45 VA (100 VAC), max. 60 VA (240 VAC)

Insulation resistance: Between the Ethernet, RS-422/485, and each insulation terminal and earth: 20 MΩ or greater (at 500 VDC)

Withstand voltage: Between the power terminal and earth: 3000 V AC (50/60 Hz) for one minute

Dimensions(mm): 144 × 168 × 197 (main unit); 144 × 168 × 248(including modules)

Weight: Approx. 1.9 kg (main unit only)
