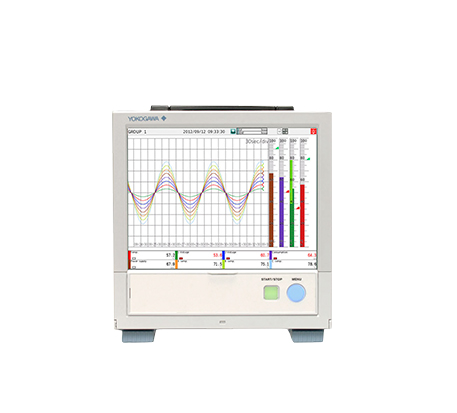

Yokogawa GP20 Portable Touch screen Recorder

Panel thickness: 2 to 26 mm

Display: 12.1" TFT color LCD (800 × 600 dots)

Touch screen: 4 wire resistive touch screen, 2-point touch detection

Max. no. of connectable modules: 10 (When mounted on expansion module: 9) ( The maximum number of connectable modules is limited by the maximum number of I/O channels,and differs depending on the types and combinations of modules.)

Analog input channels: Standard: 100, Large memory: 450 (with expansion unit)

No. of mathematical channels: GX20-1, GP20-1: 100, GX20-2, GP20-2: 200

No. of communication channels: Standard: 300, Large memory: 500

Internal memory (flash memory): Standard: 500 MB , Large memory: 1.2 GB

External storage media: SD memory card (up to 32 GB) (format: FAT32 or FAT16), 1 GB included USB interface (/UH option): USB 2.0 compliant (external storage media: USB flash memory)

(Keyboard/mouse: HID Class Ver. 1.1 compliant)

Other functions: Security functions: Key lock function, login function, Clock functions: With calendar function, accuracy: ± 5 ppm (0 to 50°C),LCD saver function

Rated supply voltage: 100 to 240 VAC (allowable power supply voltage range: 90 to 132 VAC, 180 to 264 VAC).

Rated supply frequency: 50/60 Hz

Power consumption: Max. 90 VA (100 VAC), max. 110 VA (240 VAC)

Insulation resistance: Between the Ethernet, RS-422/485, and each insulation terminal and earth: 20 MΩ or greater (at 500 VDC)

Withstand voltage: Between the power terminal and earth: 3000 V AC (50/60 Hz) for one minute

Dimensions(mm): 288 × 288 × 169 (main unit); 288 × 288 × 220 (including modules)

Weight: Approx. 6.0 kg (main unit only)
