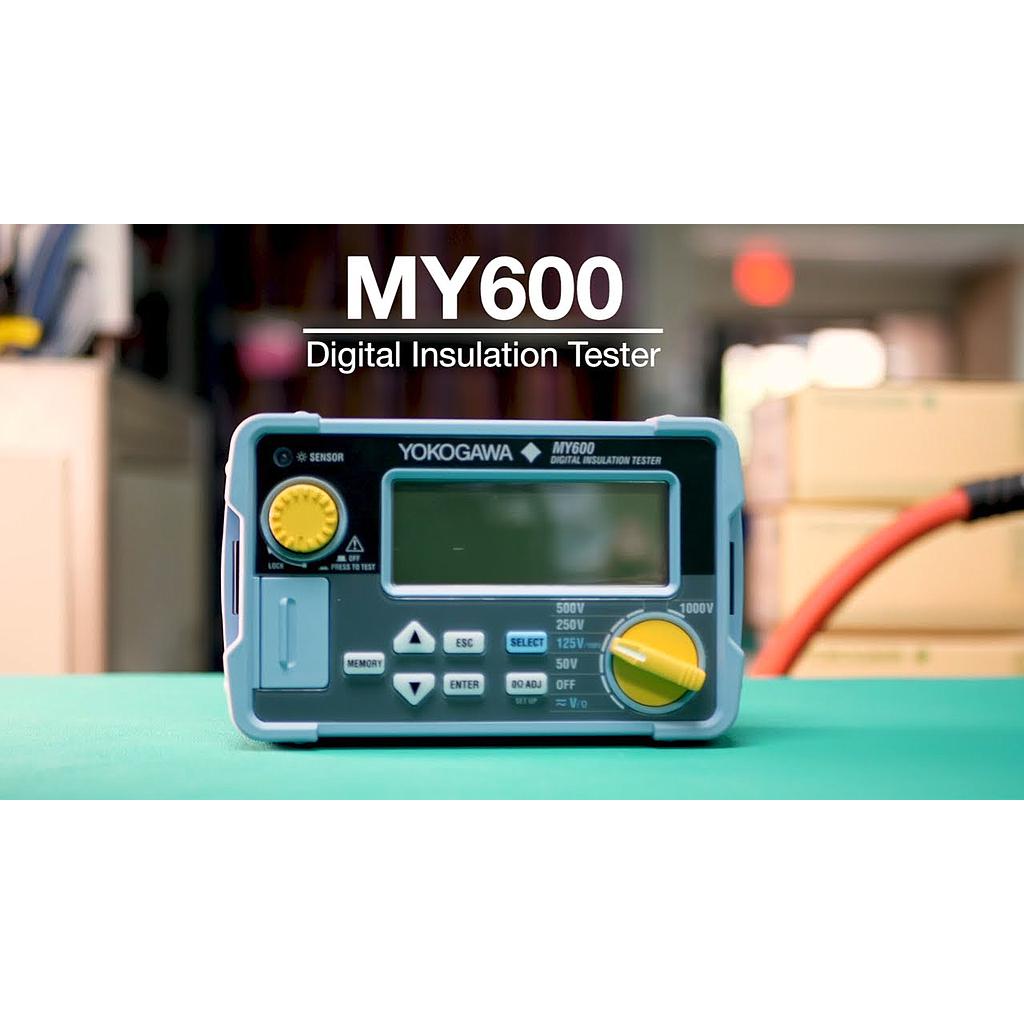

Yokogawa MY600 Digital Insulation Tester

Rated measuring voltage: 50 V, 100 V, 125 V, 250 V, 500 V, 1000 V

Test condition: 23±5°C, 80% RH or less (no condensation)

Operating temperature/ humidity range: −10 to +50°C, 80% RH or less (no condensation)

Storage temperature/ humidity range: −20 to +60°C, 75% RH or less (no condensation)

Auto-power off: The tester is automatically turned off when no key operations are performed for 10 minutes.

Battery Life: Approx. 1300 tries (500 V/0.5 MΩ)

Power source: Four size AA batteries

Dimensions: Approx. 156 (W) × 46 (H) × 97 (D) mm

Weight: Approx. 490 g (with battery)

Standard accessories (attached) Instruction manual, Four size AA batteries, 93045: Soft case, 98008: Line probe, 98009: Earth probe set, 99018: Shoulder strap

Accessories (sold separately) 91030: USB Communication Adaptor, 99012: Probe tip (extended type), 99013: Probe tip (hook type)
