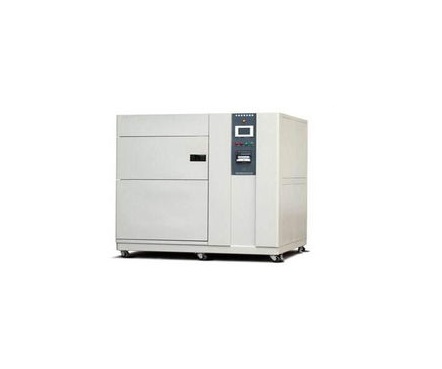

Internal Dimension: (W×H×D)40×36×35 cm
Structure: Two chambers design(the hot chamber or the cold chamber)
Damper device: Forced air drived damper
Interior material: SUS# Stainless steel plate
Exterior material: SUS# Stainless steel plate
Basket material: SUS# Stainless steel plate
Refrigeration: Cascade refrigeration system
Cooling method: Water
Ambient temperature: 0°~30°
Preheating temperature: above freezing 60.00°C~above freezing200.00°C
Precooling temperature: subzero 10.00°~ subzero 70.00°C
H.T. Shocking: above freezing 60.00°C~above freezing 150.00°C
L.T. Shocking: subzero 10.00°C~subzero 65.00°C
Temperature uniformity: ±2.00°C
Simulated load ic: 5.0kg
HT IN-Zone: subzero 65.00°C~above freezing 150.00°C/5min
LT IN-Zone: above freezing 150.00°C subzero 65.00°C
Preheating time: 30MIN
Precooling time: 60MIN
Senor: T×4
Controller: OYO-8226
Setting range: Temperature:subzero 100.00°C~above freezing 200.00°C/TIME:OHIM~999H/CYCLE:0 ~9999
Resolution: Temperature:0.1°C
Output mode: PID and SSR(control method)
Power(K.W): AC380V 50HZ 18KW
