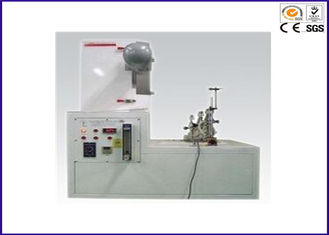

Burning test private metal mould
1, Six imported burner nozzle, you can control propane and air flow rate,
2, Burner nozzle height can be adjusted up and down; 250mm from the outer surface of the specimen,
3, Pressure gauge and regulator valve regulates the burner gas pressure in the range of 0 ~ 10kPa,
4, Gas automatic blocking device, which blocked gas supplies when the test is 5seconds,
6, Automatic ignition, switches off automatically after 5s ignition;
Back with strap test section:
1, Stainless steel baffle plate, appearance and corrosion;
2, Imported Bunsen burner, gas and air flow rate can be adjusted;
3, Torch lifting device; stainless steel sample holder;
4, Automatic timing;
5, Flame height is 40mm; the temperature at 20mm is 800 ± 50 ºC;
6, Automatic ignition, turns off automatically after 20s ignition;
Specification:
Size: 1,400 (W) x 650 (D) x 1,300 (H) mm
Power: AC 220V, 50 / 60Hz, 15A;
Weight: 80 kg
