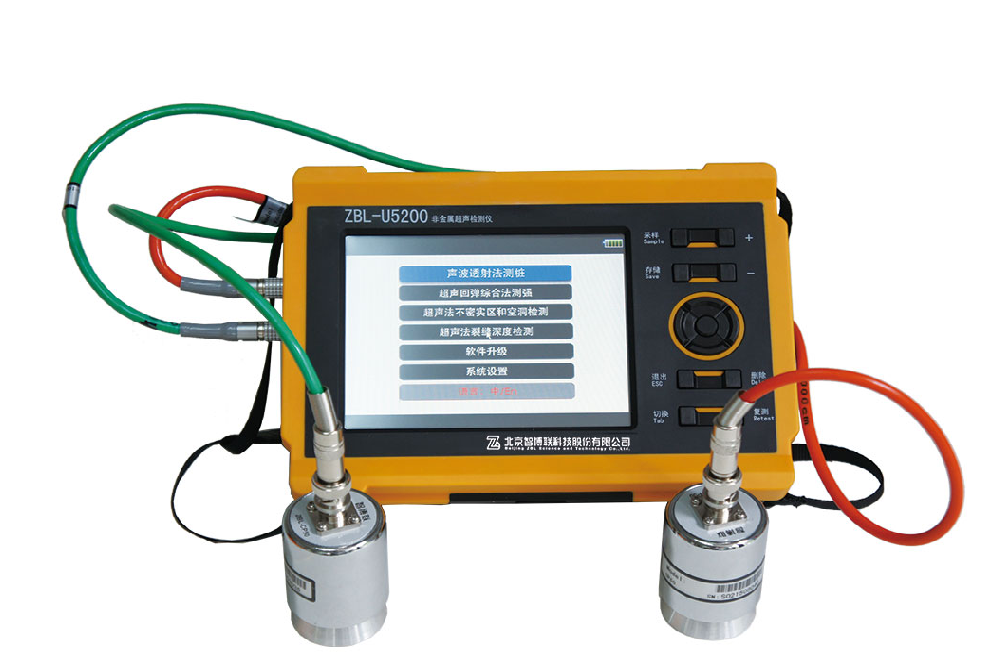

ZBL U5200 Ultrasonic Detector

Control Mode: Internal A8 Industrial control board
Data storage: Internal
Signal collecting mode: Automatic continuous collection
Trigger: signal
Acoustic transit time accuracy: 0.025μs
Dynamic range: 154dB
Receiver sensitivity: ≤10μv
Emission voltage（V）: 65、250、500、1000 V adjustable
Data transmission: USB、MiniUsb、Wi-Fi、Bluetooth
Power Internal: Built-in lithium battery
External: 220V AC/DC
Weight: 1.36kg（lithinum battery included）
Screen: 5.7inch、high brightness TFT LCD screen
Operation Mode: Touch screen and button
Channels: 1 emitter＋2 receiver
Sampling interval: 0.025μs~1638.4μs adjustable
±1677.7ms
Amplifier bandwidth: 3~450kHz
Gain error: 0.5dB

Size（mm: 210×149×60
Operational environment Temperature: -10℃~+40℃
Humidity: <90%RH
Battery time: >5h
Size（mm） 210×149×60
Operational environment Temperature -10℃~+40℃
Humidity <90%RH
Battery time >5h
U5200 ,Plane probe ,Signal wire,Waterproof case

Datasheet

Manmual

Quick detection of the integrity of basic pile continuous wall with Ultrasonic Penetration Method        Testing pressure strength of concrete with Ultrasonic - Test Hummer Method
    Testing depth of concrete fractures, quality of combined surface, thickness of surface damage layer, internal defect of steel pipe concrete, empty areas, and cellular empty with Ultrasonic Method.
    Testing of wells using a Single Hole, single Emitter, double Receiver Method
    Testing the quality of refractory.
    Testing the mechanical properties of nonmetal materials such as Geological survey, rock, concrete, etc.
