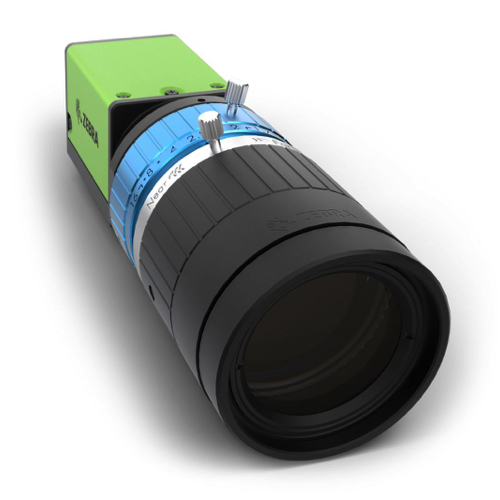

Zebra CV60 Machine Vision Camera (74.25 MHz)

System Clock: 74.25 MHz (for pulse generator)

EMVA 1288 Parameters Absolute Sensitivity Maximum SNR: 10-bit output format | Mono: 3.71 p Color: 4.86 p (l = 527 nm) | Mono: 39.7 dB Color: 39.7 dB

Traditional SNR: Greater than 60 dB mono, Greater than 60 dB color (0 dB gain, 10-bit)

Video Signal Output: Monochrome: 8/10/12-bits | Color: 8/10/12-bit Bayer

Gain Control: Manual/auto 0 dB to +42 dB

White Balance: Off, presets, or one-push/continuous AWB

Gamma/LUT: 0.45 to 1.0 (9 steps) or 257-point programmable LUT

Synchronization: internal

Video Modes: Normal/Single ROI, Sequencer (Trigger and Command)

Trigger Input: Opto In, Pulse Generators (4), Software, NAND Out (2), User Output (4)

Exposure Modes: Timed/EPS, RCT, Trigger Width, Auto

Shading Correction: Flat shading, color shading (color model)

Pre-Processing Functions: H and V flip (mirroring), blemish compensation, H and V decimation

Operating Temp. (Ambient): 23°F/-5°C to 113°F/45°C (20 to 80% non-condensing)

Storage Temp. (Ambient): -13°F/-25°C to 140°F/60°C (20 to 80% non condensing)

Vibration: 10G (20 Hz to 200 Hz, XYZ directions)

Shock: 80G

Power: 6-pin: +10V to +25V DC. 2.7 W typical @ +12 V | PoE: +36V to +57 V DC. 3.7 W typical @ +48 V

Lens: C-mount

Dimension(H x D x W): 29 mm x 29 mm x 51.5 mm

Weight: 65 g
