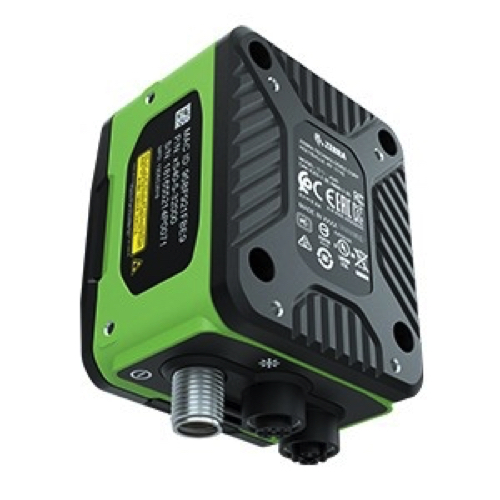

Zebra FS40 Fixed Industrial Scanner

Dimensions (H x D x W): 54.0 x 64.0 x 91.4 mm

Weight: 14.1 oz / 400.0 g

Ports:

(1) M12 X-Coded 1000/100/10 Mbps Ethernet

(1) M12 12-pin Power / GPIO

(1) 5-pin M12 External Light & Control / GPIO

(1) USB 3.0 SuperSpeed Type-C with DisplayPort

Configurable IO:

Four opto-isolated GPIO: GPIO0,1,2,3

Five non-isolated GPIO: GPIO4,5,6,7,8

Color and Material: Industrial blue aluminum housing

Ports:

One M12 X-Coded 1000/100/10 Mbps Ethernet

One M12 12-pin Power / GPIO / RS-232

One 5-pin M12 External Light & Control / GPIO

One USB 3.0 SuperSpeed Type-C with DisplayPort

Alternate Mode: Available with one or two Ethernet ports; PoE supported only by the primary Ethernet port

Protocols: Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232

Status Indicators: 360° LED, five integrated status LEDs, adjustable beeper volume

Image Sensor:

2.3MP: 1/2.3 inch CMOS, global shutter, 1920 x 1200, 3.0 µm square pixels, Monochrome

5.1MP: 1/2.5 inch CMOS, rolling shutter, 2592 x 1952, 2.2 µm square pixels, Monochrome

Acquisition Rate:

2.3MP: Up to 60 frames per second

5.1MP: Up to 30 frames per second

Aimer: Red laser Class II; 8-dot pattern

Illumination: Field-replaceable modules

Imager Field of View:

SR: 10.8 mm Liquid Lens, 30° H x 19° V (Nominal)

WA: 6.8 mm Liquid Lens, 46° H x 29° V (Nominal)

Operating Temperature:

32°F to 113°F / 0°C to 45°C (10–30 VDC external power supply, duty cycle dependent)

32°F to 113°F / 0°C to 40°C (PoE, duty cycle dependent)

Storage Temperature: -40°F to 158°F / -40°C to 70°C

Protection Rating: IP65 and IP67

Humidity: 5% to 90% RH, non-condensing
