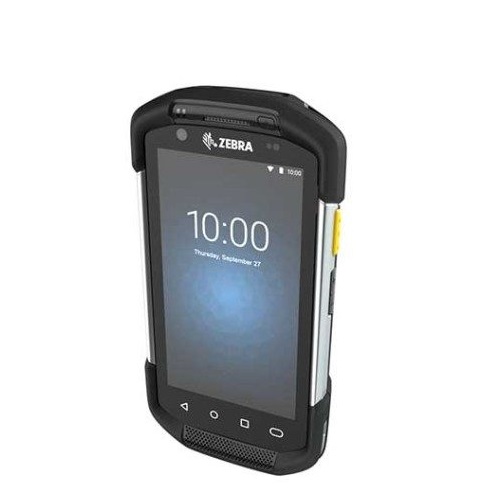

Zebra TC77 Touch Computer (Android 10; WWAN, WLAN, WPAN; Scanning 1D, 2D)

Dimensions: 6.3in. Lx3.3in. Wx1.1in. D

161mm Lx84mm Wx28mm D

Weight: 13.3oz/376g

Display: 4.7in. High Definition (1280x720); exceptionally bright, outdoor viewable; optically bonded to touch panel

Touch panel: Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately);

Screen Protector and Rain modes;

Corning Gorilla Glass

Backlight: LED backlight

Power: Li-Ion 3.7V, 4620mAh

Network connections: WWAN (cellular), WLAN (WiFi), WPAN (Bluetooth); USB 2.0 High Speed (host and client)

Scanning: SE4770: 1D/2D omnidirectional imager

SE4750: 1D/2D omnidirectional imager

Digimarc Symbology support

Camera: Front—5MP fixed focus

Rear—13MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization

Camera supports barcode scanning

NFC: ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards;

P2P mode and Card Emulation via Host

SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU

GPS: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou
