Manufacture: ZHUOMAO

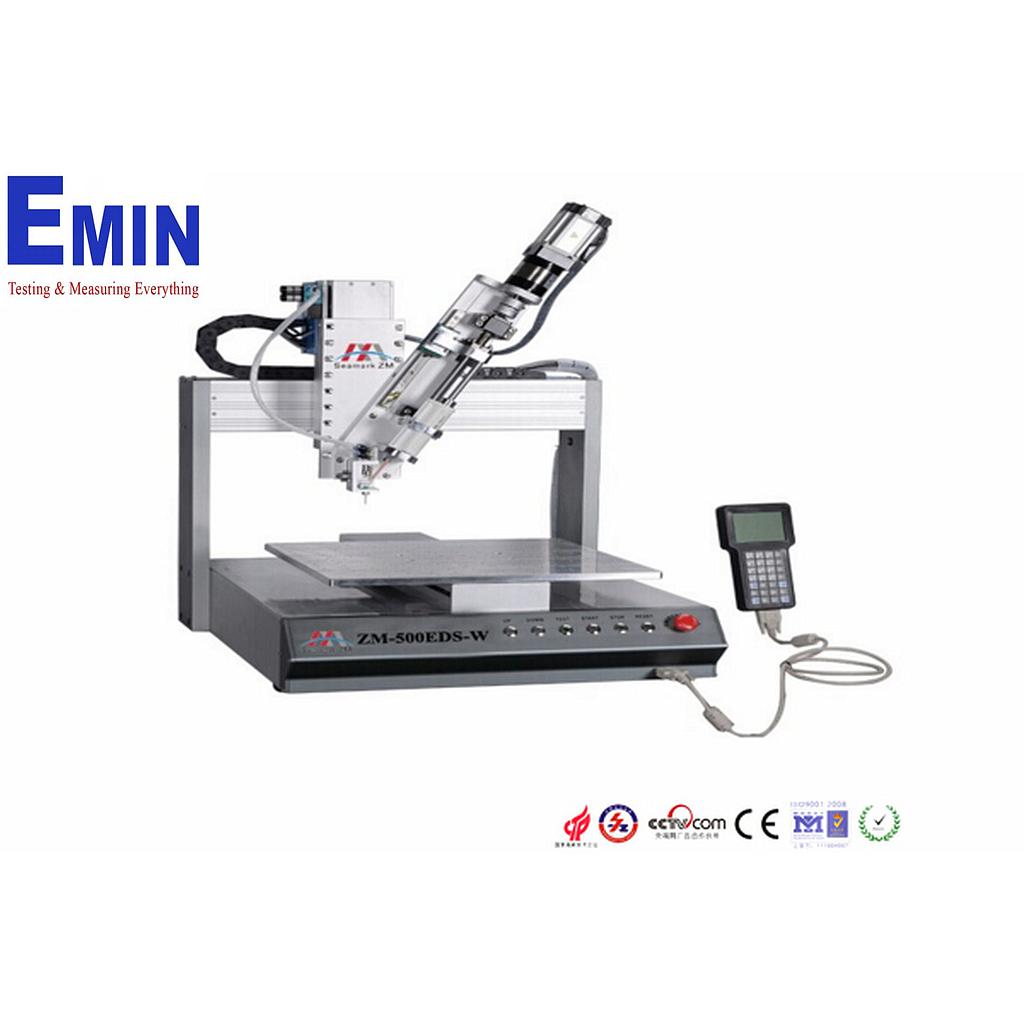

Model: ZM-500EDS-W
Made in: China
Warranty : 12 months
Work area: 500(X)╳500(Y)╳100(Z)mm
Size: 690(L)*840(W)*681(H)mm
Y/Z Max load: 20kg/10kg
Travel speed: 400mm/sec(XY)/200mm/sec(Z)
Drive mode: Serve system
Feeding system: Serve system
Dispensing mode: SMC needle valve
Repeatability: ±0.02mm
Program capacity: 999 parameter files(65535 points per file)
Operation system: LCD panel /Teach pendant
Movement pattern: 3 axis point to point, continuous line, arc
I/O signal ports: 4 inputs/4 outputs
Power supply: AC220V 50/60Hz 0.9kw
Work condition: Temperature 0-40℃; humidity 20-90%
Weight: About95kg
Features:
1. Application to 50ml 2-components structural glue with different kinds of ratio, such as 1：1,2：1,4：1, 5：1,10：1;
2. Functions of drawing points, lines, surfaces, arc, circle and consecutive complement of irregular curves to realize any 3D non-planar trajectory path.
3. Excellent teaching function to support array, graphical browsing,3D ellipse, common graphical library inserting, group editing and so on.
4. MINISD file storage with high speed and2Gcapacity can store 999 dispensing process documents.
5. The size of glue, speed of glue spreading, dispensing time, time of halting dispensing can be set by parameters.
6. With Zhuomao special liquid-halting needle valve, glue outflow is quite stable without leaking and dripping.
7. The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8. Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate many kinds of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.).
9. The patent technology of servo motor pushing glue can effectively eliminate the environment pressure changes on the amount of glue to make glue flow faster and more stable, thus ensure the glue lines to be uniform.
