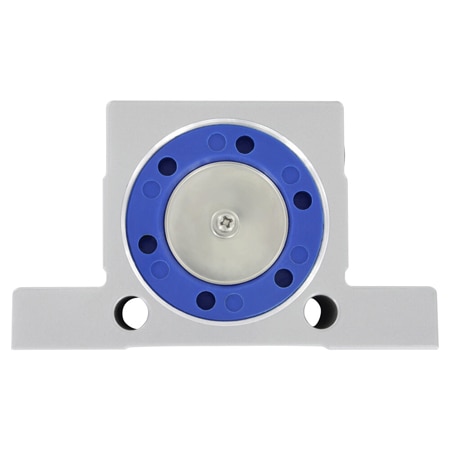

Dwyer PRV-2 Pneumatic Roller Vibrators for Material Flow & Concrete Injection (1376 lbF, 14.13 CFM)

Weight: 1.19 lb

Frequency: 26000 VPM

Force Note: 614 lbf @29 psi, 1086 lbf @58 psi, 1376 lbf @87 psi

Air Connection: 1/4" BSPT Female with 1/4" OD Push to Connect Adapter

Frequency Note: 19000 VPM @29 psi, 21000 VPM @58 psi, 26000 VPM @87 psi,

Air Consumption: 14.13 CFM

Noise Level Range: 75 to 100 dBA

Max Vibrating Force: 1376 lbF

Air Consumption Note: 7.06 cfm @29 psi, 10.59 cfm @58 psi, 14.13 cfm @87 psi

Supply Pressure, Max: 87 psi

Process Temperature, Max: 212 °F

Datasheet
