Measuring range temperature: 32.0 … 122.0 °F
Resolution: 0.1 °F
Accuracy: ±0.9 °F
Measuring range humidity: 0.0 … 99.9 % RH
Resolution: 0.1 % RH
Accuracy: ±3 % RH
Further specifications
Response time: <15 seconds at a wind speed of <1 m/s
Display interval: 1 Hz
Number of usable sensors: 4
Digit height: 100 mm / 3.9"
Digit colour: white
Sensor supply voltage: 12 and 24 V DC
Maximum sensor supply current: 100 mA
Impedance current input: <200 Ω
Housing material: black painted aluminium housing
Screen protection: anti-reflective methacrylate
Housing material sensor: ABS
Protection class display: IP20
Protection class sensor: IP30
Power supply display: 110 ... 220 V AC 50 / 60 Hz
Maximum power consumption: 18 W
Mounting display: wall mounting, monitor stand (75 x 75 mm / 2.95 x 2.95")
Mounting sensor: wall mounting
Terminal strip power supply cable cross-section:
0.5 … 2.5 mm² (AWG 14) rigid cable
0.5 … 1.5 mm² (AWG 15) flexible cable
Terminal strip sensor connection cable cross-section:
0.14 … 0.15 mm² (AWG 18) rigid cable
0.15 … 1 mm² (AWG16) flexible cable
Terminal strip torque: 1.2 Nm
Terminal strip screw length: <12 mm / 0.47"
Dimensions display: 535 x 327 x 53 mm / 21.0 x 12.8 x 2.0"
Dimensions sensor: 80 x 80 x 35 mm / 3.1 x 3.1 x 1.3"
Operating conditions: -10 … 60 ºC, 5 … 95 % RH, non-condensing
Storage conditions: -20 … 70 ºC, 5 … 95 % RH, non-condensing
Weight display: 4579 g / 161.5 oz
Weight sensor: 66 g / 2.3 oz
Delivery Scope:

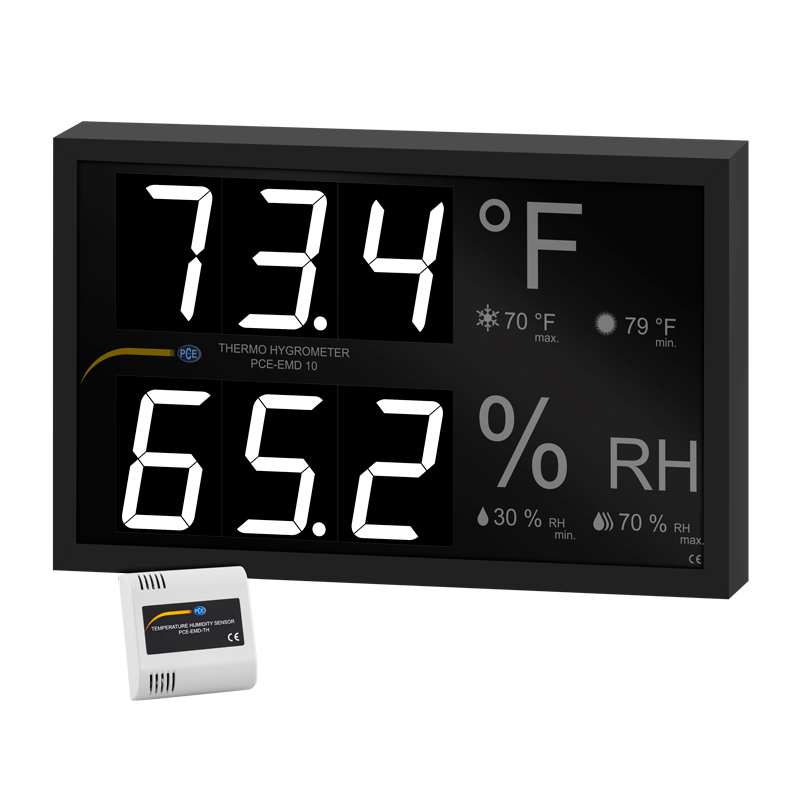

1 x Thermo Hygrometer PCE-EMD 10
2 x Wall mounting brackets
1 x Sensor module PCE-EMD-TH
1 x Instruction manual
