As more photovoltaic (PV) systems are commissioned worldwide, the solar industry is entering a new phase centered on large-scale operation and maintenance (O&M). Alongside routine inspections comes a growing emphasis on safety, particularly when working with PV strings operating at DC voltages of up to 1500 V.

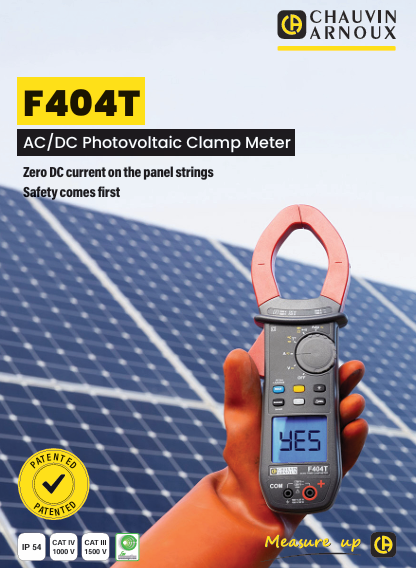

To address these challenges, Chauvin Arnoux has released the F404T Clamp Meter, a professional solution designed for EPC contractors, O&M service providers, solar power plants, and industrial maintenance teams. With measurement capabilities of up to 1700 V DC and 1500 A DC, patented AutoCheck technology, and a rugged design optimized for field use, the F404T delivers the performance and safety required for modern high-voltage DC applications.
The instrument is ideal for verifying PV strings before commissioning, measuring the operating current of individual strings, checking inverter DC inputs, testing DC fuses, identifying current imbalance between parallel strings, and supporting routine maintenance at solar power plants.
Beyond renewable energy applications, its wide measurement range and automatic AC/DC detection also make the F404T an excellent choice for industrial electrical maintenance, battery energy storage systems (BESS), EV charging infrastructure, and other high-power DC installations.
Key Specifications
The Chauvin Arnoux F404T offers a comprehensive set of features to meet today's electrical testing requirements:
AutoCheck: Verifies the integrity of the measurement circuit before confirming that no current is present.
DC Current: 0.25 A to 1500 A
DC Voltage: 0.15 V to 1700 V
AC Current: 0.25 A to 1000 A
AC Voltage: 0.15 V to 1200 V
10,000-count backlit LCD display
48 mm jaw opening
Safety rating: CAT IV 1000 V / CAT III 1500 V
IP54 protection with 2 m drop resistance
Temperature measurement: -60 °C to +1000 °C using a Type K thermocouple
12-bit True RMS for accurate measurements on distorted waveforms and inverter-based systems
Key Features
Built for High-Voltage Solar PV Systems
The Solar Clamp meter F404T measures up to 1500 A DC and 1700 V DC, making it ideal for high-voltage photovoltaic systems increasingly deployed in utility-scale solar farms and commercial PV installations.
In addition to its DC measurement capabilities, the F404T performs a full range of AC electrical measurements, including voltage, current, resistance, frequency, continuity, diode testing, and temperature measurement using a Type K probe. This versatility enables technicians to complete multiple inspection tasks with a single instrument instead of carrying several test devices.
AutoCheck – A Patented Safety Innovation
The defining feature of the F404T is not simply its extended measurement range but its AutoCheck IDC technology—an exclusive innovation patented by Chauvin Arnoux.
When maintaining photovoltaic systems, technicians must confirm that a PV string is completely de-energized before disconnecting connectors, replacing DC fuses, or servicing an inverter. If a faulty meter incorrectly displays a zero-current reading, the risk of arc flash or electrical accidents remains.
AutoCheck was developed to eliminate this risk. Before displaying a measurement that can be trusted, the F404T automatically verifies the integrity of its measurement circuit by generating an internal DC reference current. Only after this self-test has been successfully completed is the measurement considered reliable.
Accurate Measurements on Inverter-Based Systems
Modern solar power systems rely on power inverters, meaning electrical waveforms throughout the installation are often far from ideal sine waves.
Equipped with 12-bit True RMS processing, the Clamp meter accurately measures both AC and DC signals with complex waveforms. It maintains excellent accuracy when testing non-linear loads and electrically noisy systems, allowing technicians to assess actual operating conditions rather than relying on average-value measurements.
Designed for Demanding Field Environments
The F404T is built to withstand harsh outdoor conditions with an IP54 protection rating, providing resistance against dust and water splashes. Its rugged housing has been tested to withstand drops from 2 meters, while the rubber-coated rotary selector offers a secure grip even when operated with insulated gloves.
Its 48 mm jaw opening accommodates the large-diameter conductors commonly found in utility-scale photovoltaic installations, making current measurements inside DC combiner boxes and cable termination cabinets more convenient.
The instrument also features a 10,000-count high-contrast backlit LCD, ensuring clear visibility whether working inside inverter rooms or under bright outdoor sunlight.
One Clamp Meter for Multiple Inspection Tasks
Designed for comfortable one-handed operation, the F404T features a simple one-button, one-function interface that minimizes operation time during field inspections.
The meter automatically detects whether the measured signal is AC or DC when performing voltage and current measurements, reducing the possibility of selecting the wrong measurement mode.
It also includes a wide range of diagnostic functions, including resistance, frequency, continuity, semiconductor diode testing, and temperature measurement using the supplied Type K probe.
Additional Min/Max, ΔREL, and ΔREL/R functions allow technicians to monitor parameter variations and quickly compare readings with reference values. These features are particularly valuable for evaluating current balance between PV strings or verifying voltage changes after component replacement.
The Chauvin Arnoux F404T is a dedicated AC DC clamp meter engineered specifically for high-voltage photovoltaic applications. With measurement capabilities of up to 1700 V DC and 1500 A DC, patented AutoCheck technology, and a field-ready design, it provides technicians with a safer and more reliable solution for testing and maintaining modern solar power systems.
